5ton NPR Tipper Isuzu

Comments

Applications

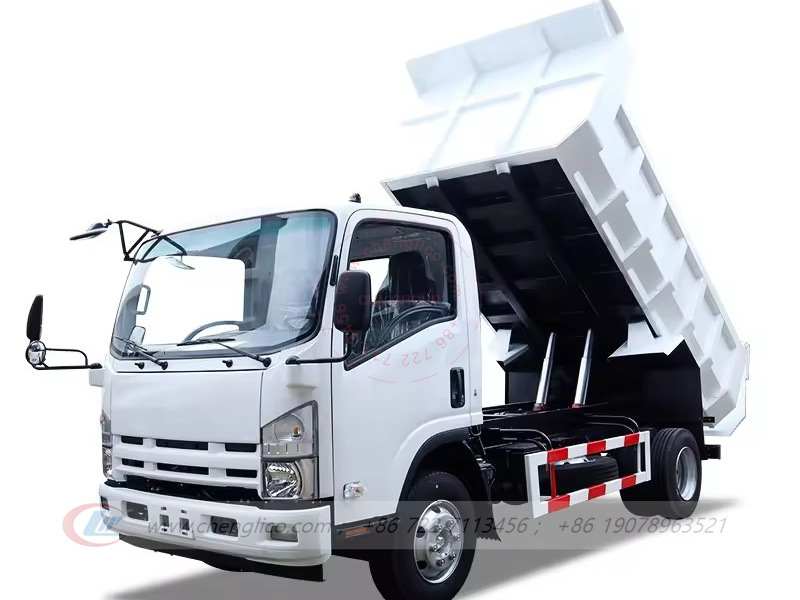

Isuzu 700P garbage dump vehicle has a load capacity of 5 tons and can meet the needs of various sanitation operations. Whether it's road sweeping, garbage hauling or construction waste hauling, it can get the job done. Therefore, this car is definitely the best choice for users who need to complete sanitation tasks efficiently. At the same time, it uses advanced exhaust gas treatment technology and a low-emission engine to effectively reduce the impact of exhaust emissions on the environment. This is an important consideration for truck enthusiasts and buyers seeking green mobility and environmental awareness. It also has the characteristics of high stability and good controllability. Whether on narrow city streets or bumpy country roads, it handles all road conditions with ease.5ton NPR Tipper Isuzu-图片1文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

Key Features文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

The Isuzu sanitation dump truck is a truck specially designed for garbage removal and sanitation work in urban environments. Its characteristics are as follows:文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

  1. Super load-carrying capacity:The chassis and frame of the Isuzu sanitation dump truck are made of high-strength steel and have excellent load-carrying capacity. Its special design and powerful power system enable it to withstand large garbage loads while ensuring driving reliability and stability.
  2. Flexible dump function:This truck is equipped with an advanced dump system that can automatically dump and unload garbage. Its adjustable unloading angle and height make handling various types of waste more convenient and efficient. In addition, the reliability and stability of the self-unloading function make the unloading process safer.
  3. Excellent mobility:Isuzu sanitation dump trucks adopt a compact and flexible design, which can adapt to the busy urban traffic environment. Its small turning radius and good handling performance allow the truck to easily maneuver through narrow city streets and busy traffic jams, improving work efficiency and operational convenience.
  4. Efficient cleaning and maintenance:Isuzu sanitation dump trucks are designed with ease of cleaning and maintenance in mind. Unique body and structural design make the cleaning process easier and faster. In addition, easily disassembled parts and components and convenient serviceability make maintenance and repair more efficient and economical.
  5. Environmental protection and energy-saving features:This truck adopts an advanced low-emission engine and an efficient fuel system, which has excellent fuel economy and environmental protection performance. This not only contributes to the improvement of the urban environment, but also reduces operating costs and meets the requirements of modern society for sustainable development.5ton NPR Tipper Isuzu-图片2

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

Technical Parameters文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

Description Isuzu NPR Garbage Dump Truck
Item CLW dump truck
Model Isuzu NPR
Cabin Isuzu single cabin
whole vehicle main
dimension文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html



Overall dimensions (L*W*H)mm 6300*2350*2380 mm
Dimensions of dump body  (L*W*H)mm 3800*2250*1900 mm
Driving type Left/Right hand drive 4×2
Wheel base 3360
Weight data Curb weight (kg) 3800
Rated payload(kg) 7500
Person in cab (persons) 3
whole vehicle main
performance
Max.speed(km/h) 95
Max.slope of climb(%) 25
Min.turning radius (m) 7.5
Engine Engine model 4HK1-TC51
Engine type Vertical, water-cooled, four-stroke,
turbocharged and inter cooled
Emission standard Euro5
Displacement (L) 5.19L
Power 190 hp
Max torque (N.m/rpm) 220N.M/ 1900-2100 r/min
Steering gear type Power steering
Brake system Service brake and boosting type Air brake
Parking brake Central drum brake
Auxiliary brake Air brake
Tyre size 235/75R17.5
Dump Performance Loading Capacity 5 tons
Body Material High performance carbon
Plate Thickness Front/Side are 3mm
Control System Rear/Side are 4mm
Hydraulic Lifting Hydraulic
Discharging System Middle lifting device
Lifting Time Tipping 45 degree
Lowering Time 20 s
Tailgate 15 s
Drop side Auto release
Painting Detachable
Color & Logo Two primers,and one final paint coating
Loading Capacity According to wish
Factory Standard Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps...
Documents English operation manual, Spare parts list, and all necessary export docs.
Optional equipment 1, Dust bin lifting system (with any option)文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

2, Rear vision camera文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

3, Italy imported multi-way valve文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/5ton-npr-tipper-isuzu.html

4, Optional stainless steel waste water tank



Pictures

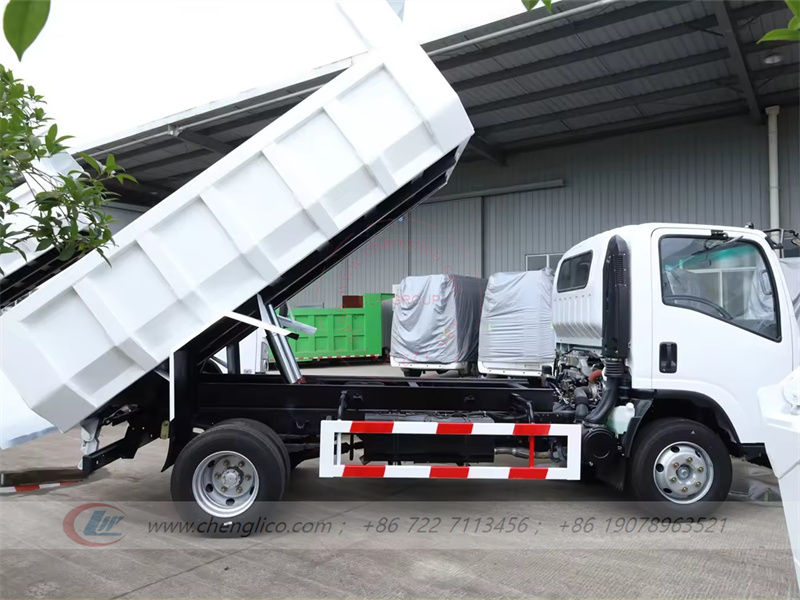

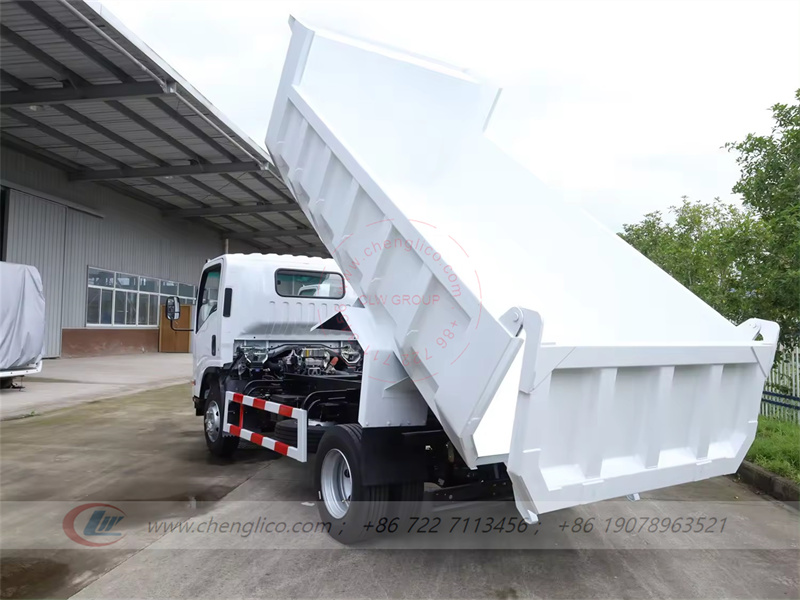

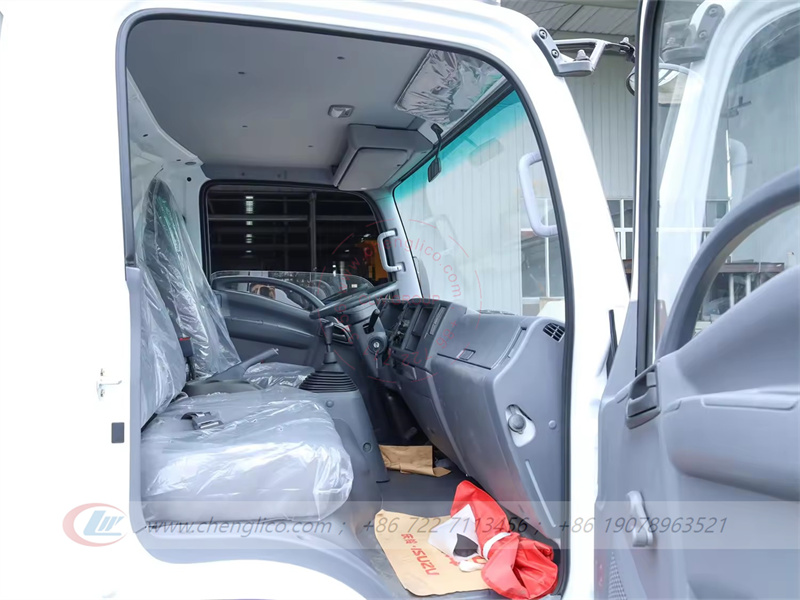

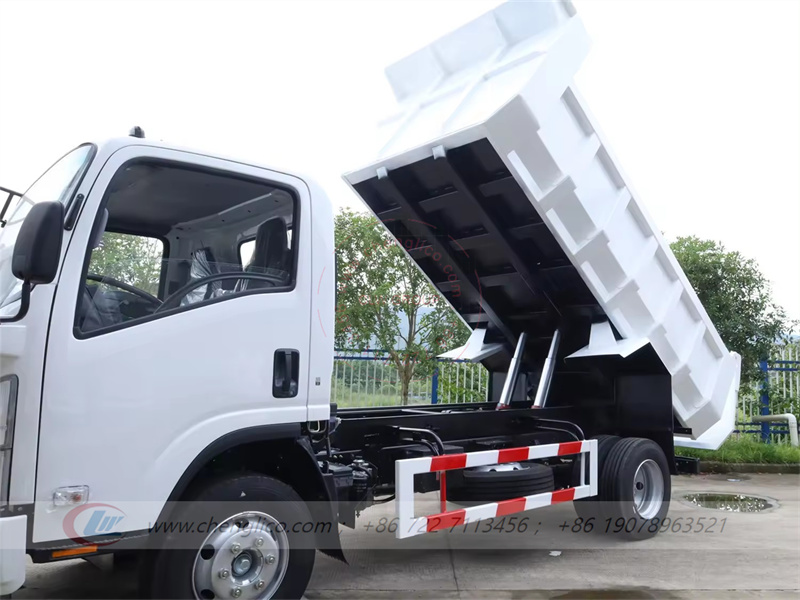

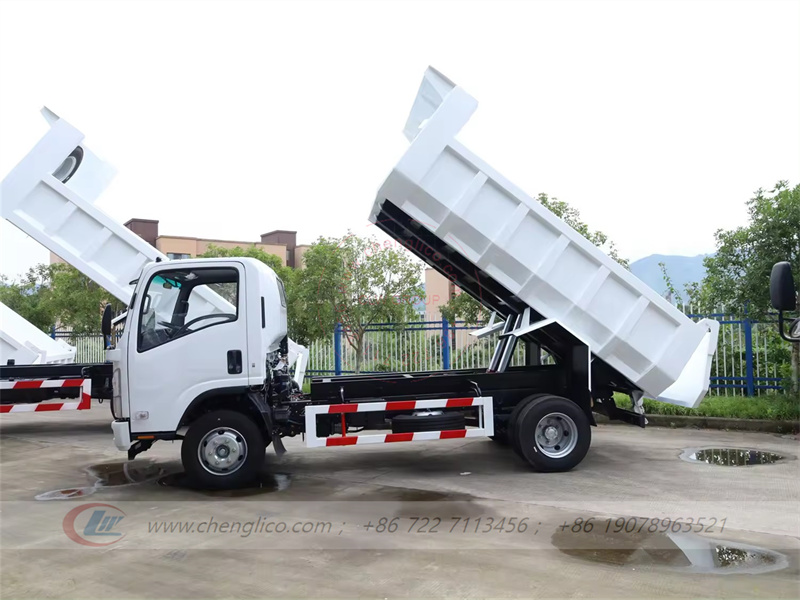

5ton NPR Tipper Isuzu-图片35ton NPR Tipper Isuzu-图片4 5ton NPR Tipper Isuzu-图片5 5ton NPR Tipper Isuzu-图片6

Company Profile

Chengli Special Automobile Co., Ltd is a leading manufacturer of special trucks in China, with over 20 years of experience and development. As the core member of Chengli Truck Group, the company has registered trademarks of CHENGLIWEI and CLW.

With a capital of 2 billion RMB and a target output of 1.5 billion dollars by 2023, Chengli employs over 10,000 individuals in their state-of-the-art facilities spread across 500 acres. The company cooperates with renowned chassis manufacturers and offers a wide range of over 300 truck series, including tank, garbage, special working, cargo transport, and engineering trucks.

Chengli prides itself on solid technology, flawless inspection, advanced equipment, and flexible operation modes. All products are backed by a 1-year warranty, lifetime maintenance, and free technical service.

With a focus on efficiency and customer satisfaction, Chengli looks forward to expanding its global footprint and seeking more cooperation in the coming years.

5ton NPR Tipper Isuzu-图片7

Success Cases

Chengli Group, a leading player in China's special vehicle manufacturing, strives for innovation and excellence in producing world-class special vehicles. The Group views meeting international demands and exploring overseas markets as a strategy and a promise to its global customer base. Chengli is committed to technological research and product innovation, recognizing that enhancing product quality and performance is key to satisfying diverse global needs. With ambitions beyond the domestic market, Chengli eyes global opportunities for broader cooperation.

5ton NPR Tipper Isuzu-图片8

Africa, Southeast Asia, Central Asia, and the Middle East offer immense market potential for high-quality, cost-effective special vehicles. Chengli seizes this chance, planning to expand its sales and service network to deliver superior customer service. The Group's philosophy revolves around the "win-win" principle, which forms the foundation of its relationships with global customers and partners.
