Aviation Fuel Trucks ISUZU

Comments

PRODUCT DETAILS

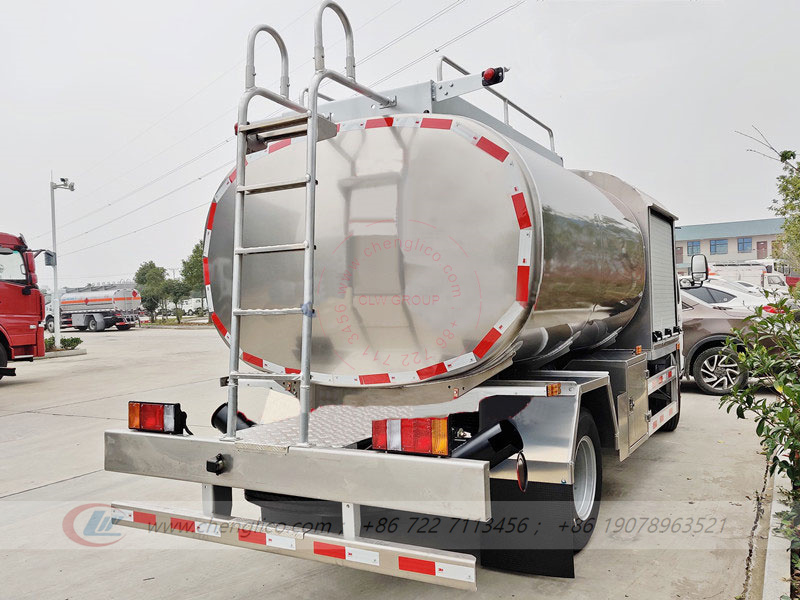

Aircraft refueling vehicles refer to those special vehicles that provide refueling and pumping for aircraft at airports. Aviation Fuel Trucks ISUZU Unlike ordinary diesel and gasoline, many aircraft use aviation kerosene. Aviation kerosene is corrosive to ordinary metals, so all the places where kerosene flows through, such as oil tanks, pipelines, pumps and fuel dispensers, should be protected against corrosion by stainless steel.Aviation Fuel Trucks ISUZU-图片11.The Isuzu fuel truck aircraft refueling trucks produced by our factory have a very bright market share at home and abroad, and have passed the EU ADR certification,High quality products and considerate service have been well received by customers at home and abroad.
2.The Isuzu helicopter fuel bowser tank body is made of aluminum magnesium alloy 5083, with light deadweight, large volume, corrosion resistance and no pollution. The quality of oil products is guaranteed. The tank and pipeline are passivated to ensure that there is no impurities. and can issue tank inspection and flaw detection reports.

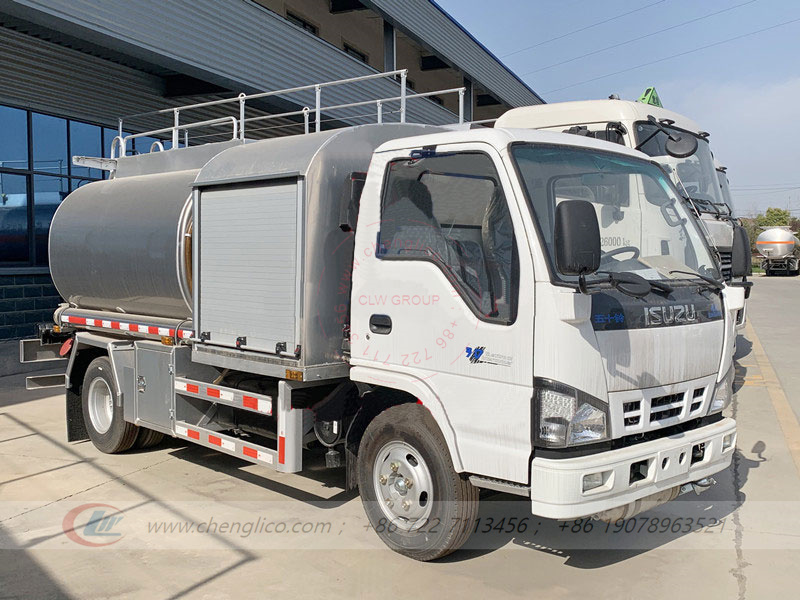

3.Meet the customer's personalized requirements for the vehicle. The Isuzu NKR fuel truck upper mounting can be completely independent from the chassis to facilitate maintenance; Accessories can be installed according to customers' request.make the operator to refuel the aircraft simply, safely and efficiently.Aviation Fuel Trucks ISUZU-图片2文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

Product Parameters:文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

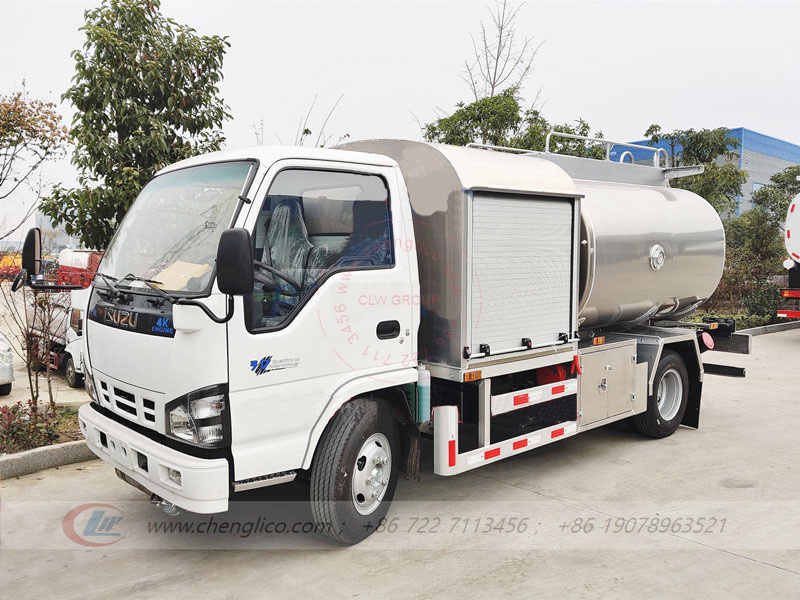

Isuzu NKR refuel tanker trucks pipeline system is simple but very practical. One main pipeline connect with fuel tank and fuel pump, which means there are two ways to collection water: firstly is pumping fuel directly through Fuel pump; secondly is collection fuel from top Manhole. The ISUZU Fuel Truck makes use of the special power take off (PTO) to get power from the engine, and then transfer the power to the Fuel Pump via drive axle so to rotate the pump. The fuel pump, pipelines, valves and joints consist of the pipeline system. Turn on / off valves through the regulated program, the pump can absorb fuel into the tank, also can pumping-out the fuel.Aviation Fuel Trucks ISUZU-图片3
文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

Truck Specification
Product Name 5000Liters ISUZU NKR Aircraft refueling truck
Truck Manufacturer Chengli
Chassis Specification
Chassis modle ISUZU
Drive type 4*2, LHD
wheelbase 3360mm
Fuel type of engine Diesel
Engine Model Isuzu
Maximum horse power 120hp
Number of cylinders 4
Emission standard Euro 5/6
Gear box Type MSB 5-SHIFT 5 forward & 1 rear
Tyres Size 7.00R16
Quantity 6+1 spare tire
Upper body specification
Fuel Tank Capacity 5 M3 / 5000Liters /5CBM Water Aircraft refueling truck
Tank Material Made of aluminum alloy
Special function Flowmeter Grade 0.2 accuracy, diameter 50, flow rate of waist wheel
Filter separator Rated flow is 400L/min, the rated working pressure is 1.0MPa, and the maximum allowable differential pressure is 0.15 Mpa.
Gravity refueling reel Automatic reset reel
Liquid level meter The stainless steel floating ball in the tank and the 10 inch aluminum alloy dial on the left side of the tank can clearly observe the current liquid volume in the tank
Oil Pump Stainless steel self-priming centrifugal pump
Operating system centralized control of independent control room.
Instrument indication Includes pump inlet vacuum gauge, pump outlet pressure gauge, oil pump tachometer, filter differential pressure gauge, etc
The valve operation Include the main power switch, lighting switch, emergency stop switch, oil pump speed regulating knob, refueling valve, circulating filter valve, sampling valve, and sea valve control combination switch

Aviation Fuel Trucks ISUZU-图片4

Performance description for ISUZU NKR HELICOPTER REFUELER TRUCKS:
1. Reel refueling: After filtering and metering, the fuel in the tank of the aviation fuel truck Isuzu is injected into the aircraft fuel tank or other fuel receiving equipment through the gravity refueling gun of the reel hose in the control room.
2. Pump oil filtration: filter the fuel in the oil tank of the Isuzu fuel bowser or in the external pipeline, and then return it to the oil tank of the vehicle or other oil receiving equipment through the pump outlet connector to realize the ball circulation filtration function.
3 .For oil tank loading, the external pipeline of the joint valve is used to load oil at the bottom of the oil tank, or the oil pumping function can be realized through this oil pump.Aviation Fuel Trucks ISUZU-图片5文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

How to choose most suitable aviation fuel truck Isuzu:文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

Choosing the right Isuzu aircraft refueling truck requires consideration of several factors. By taking these factors into consideration, you can choose the Isuzu aircraft refueling truck that best suits your aircraft refueling needs. Please note that depending on the circumstances, you may need to consult a professional or follow local airport and refueling requirements to ensure you select the correct and suitable aircraft refueling truck. Here are 7 tips on how to choose the right Isuzu aircraft refueling truck:文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

Load Capacity: Determine the required maximum refueling capacity and maximum load capacity based on different types and sizes of aircraft. Make sure the model of Aviation fuel truck Isuzu you choose can meet your fueling needs.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

Fuel type: Consider the type of aircraft and fuel type you need to refuel and make sure the Isuzu fuel tanker you choose is compatible with the target aircraft.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

Vehicle Sizes and Airport Requirements: Understand airport restrictions and requirements, including runway width and height restrictions, apron space requirements, and more. Make sure the Isuzu fuel bowser you choose is the right size to operate and move around the airport.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

Safety performance: Choose an Isuzu aircraft refueling truck with reliable safety features, such as explosion-proof facilities, emergency stop devices, fire alarms and emergency exhaust systems. These features ensure safety during refueling.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/aviation-fuel-trucks-isuzu.html

Operation convenience: Consider the Isuzu fuel truck's handling and operation convenience, such as turning radius, cockpit layout, observation field of view, etc. This convenience improves operator productivity and comfort.

Repair and Maintenance: Understand the repair and maintenance needs of the vehicle and confirm that the selected model is easy to maintain and obtain spare parts. Make sure you choose a Isuzu fuel bowser that offers consistent performance and longevity.

Brand Reputation: Consider choosing a brand that has credibility and a good reputation. As one of the well-known automobile manufacturers, Isuzu enjoys a good reputation for its high-quality and reliable products.

Company Profile

Chengli Special Automobile Co., Ltd is a leading manufacturer of special trucks in China, with over 20 years of experience and development. As the core member of Chengli Truck Group, the company has registered trademarks of CHENGLIWEI and CLW.

With a capital of 2 billion RMB and a target output of 1.5 billion dollars by 2023, Chengli employs over 10,000 individuals in their state-of-the-art facilities spread across 500 acres. The company cooperates with renowned chassis manufacturers and offers a wide range of over 300 truck series, including tank, garbage, special working, cargo transport, and engineering trucks.

Chengli prides itself on solid technology, flawless inspection, advanced equipment, and flexible operation modes. All products are backed by a 1-year warranty, lifetime maintenance, and free technical service.

With a focus on efficiency and customer satisfaction, Chengli looks forward to expanding its global footprint and seeking more cooperation in the coming years.

Aviation Fuel Trucks ISUZU-图片6

Success Cases

Chengli Group, a leading player in China's special vehicle manufacturing, strives for innovation and excellence in producing world-class special vehicles. The Group views meeting international demands and exploring overseas markets as a strategy and a promise to its global customer base. Chengli is committed to technological research and product innovation, recognizing that enhancing product quality and performance is key to satisfying diverse global needs. With ambitions beyond the domestic market, Chengli eyes global opportunities for broader cooperation.

Aviation Fuel Trucks ISUZU-图片7

Africa, Southeast Asia, Central Asia, and the Middle East offer immense market potential for high-quality, cost-effective special vehicles. Chengli seizes this chance, planning to expand its sales and service network to deliver superior customer service. The Group's philosophy revolves around the "win-win" principle, which forms the foundation of its relationships with global customers and partners.
