GAC HINO700 heavy tipper trucks 8×4

Comments

Application

GAC HINO700 heavy tipper trucks(also called heavy duty 12wheels Hino tipper truck, 30tons hino dump trucks, HINO sand dump truck, 20 cubic meters Hino tipper dump truck, 8x4 drive 40tons hino dumper vehicle) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.

Powerstar HINO dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

GAC HINO700 heavy tipper trucks 8×4-图片1文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

Key features

---- Hino heavy duty chassis, perfect performance
---- HINO P11C engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

---- Virious types of tipper body are available.GAC HINO700 heavy tipper trucks 8×4-图片2文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

Main specifications

2019 Brand new 12 wheelers HINO Tipper Dump Truck (40 tons)
General Vehicle Brand CLW
Chassis Brand HINO
Overall Dimension 10800 * 2500 * 3580 mm
GVW / Kerb Weight 35,000kg / 13,200kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Heating/cooling air conditioner
Engine Fuel Type Diesel
Engine Brand HINO P11C-UJ
Power 350 HP (258 KW)
Displacement 10520 ml
Emission Standard Euro 3 or 4
Chassis Drive Type 8X4, (left hand drive)
Transmission RT-11509C  9 speed levers with 1 reverse
Wheelbase/No. of axle 3640+1410 mm / 3
Tire Specification 11.00R20
Tire Number 10 tires and 1 spare tire
Max Speed 95 km/h
Paint Metallic paint
Superstructure Pay loading capacity 40 Tons
Cargo body 7500*2300*1500
Thickness of cargo body Bottom 8mm文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

Side 6mm

Cylinder type T Type or Domestic 180 or HYVA 150
Lifting system Middle or Front
Control in the cabin
Color & LOGO According to wish
All standard accessories: All steel body with drop sides. Auto release removable trilgate.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

Ladder, warning lights, PTO文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

fire extinguisher, basic tool kit, English manual……

Optional ** Back alarm and Camera can be equipped.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

** Other tipper body can be choose.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/gac-hino700-heavy-tipper-trucks-8x4.html

** Other material and plate thickness can be choose.

GAC HINO700 heavy tipper trucks 8×4-图片3

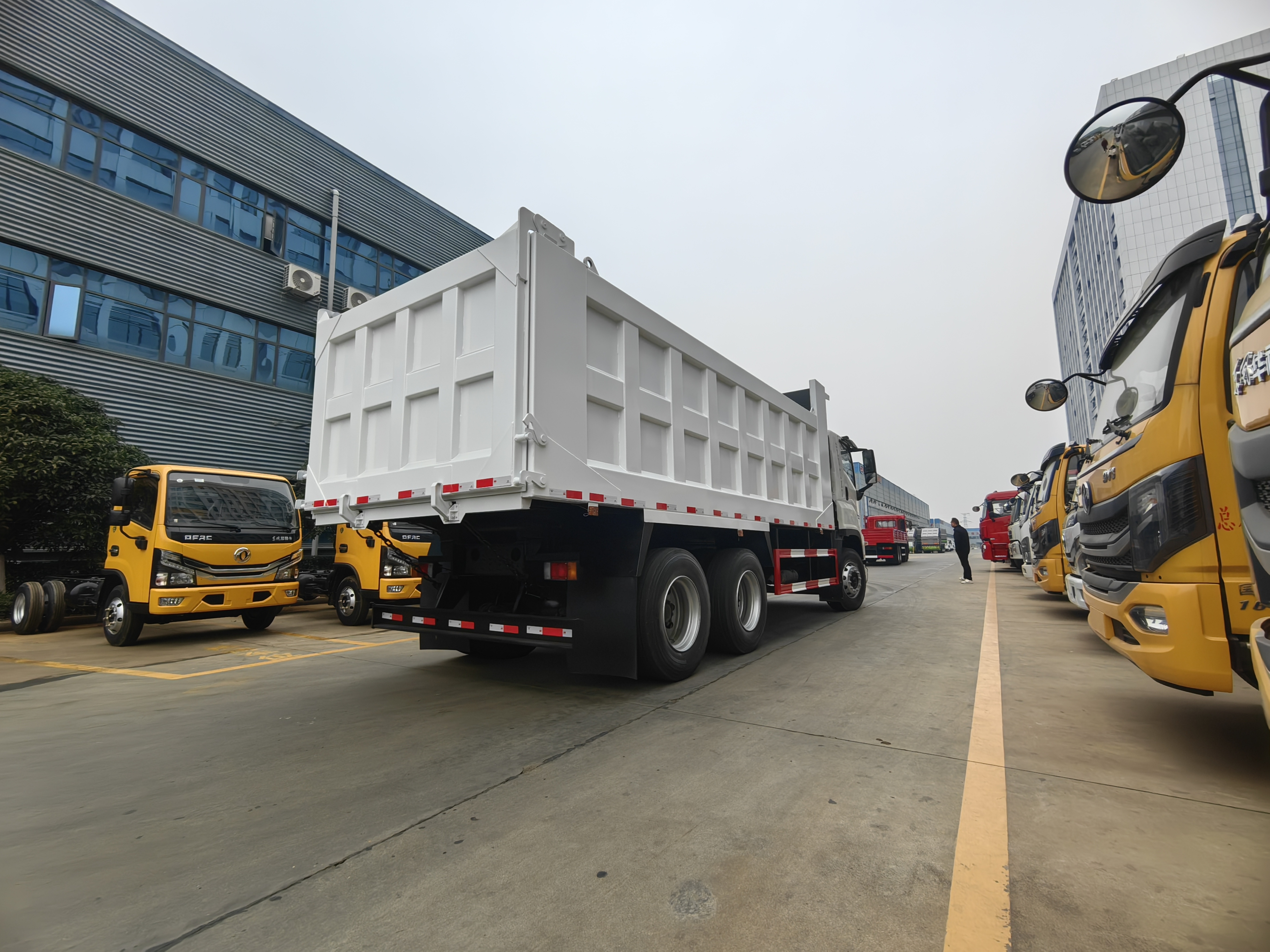

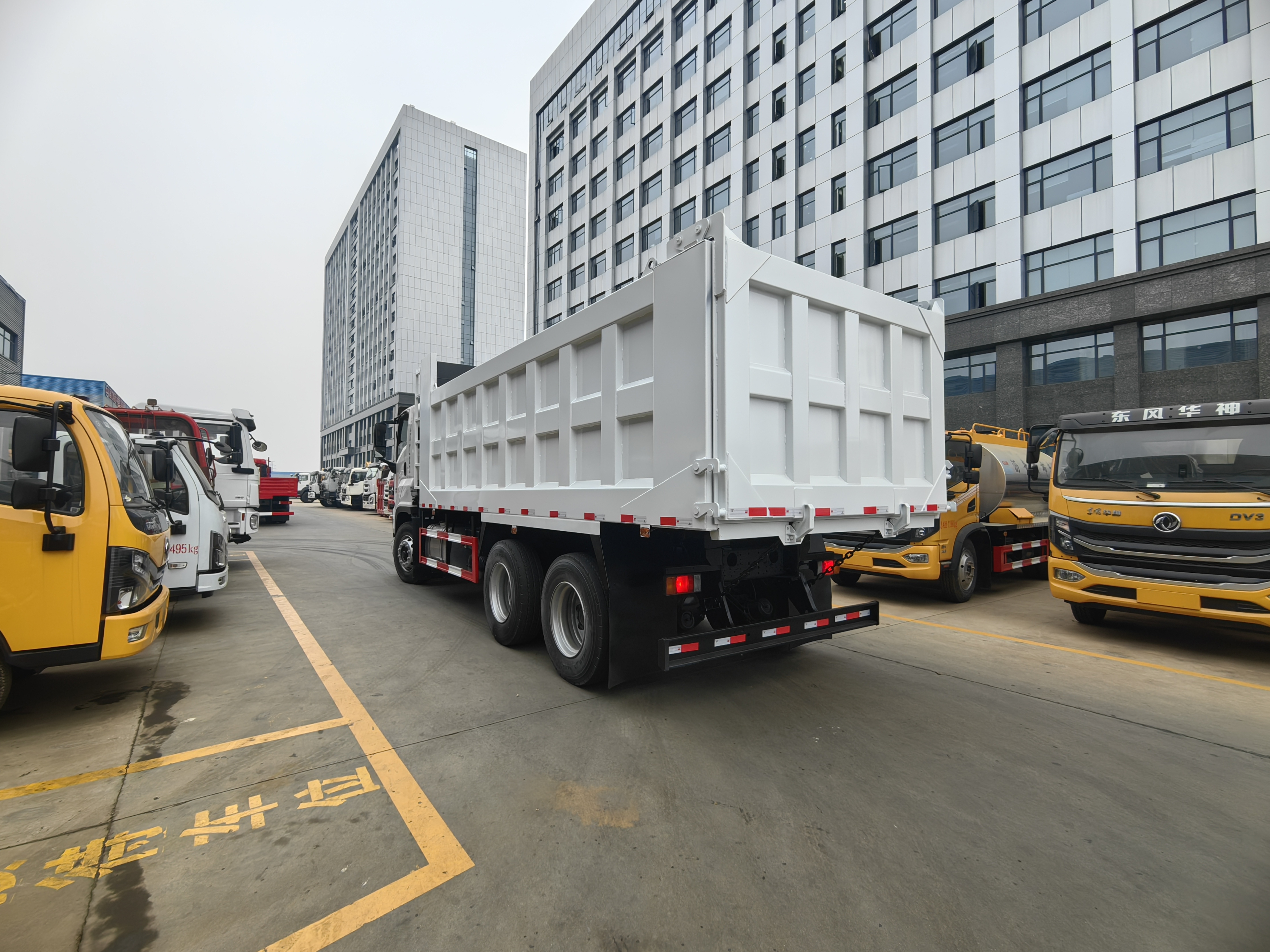

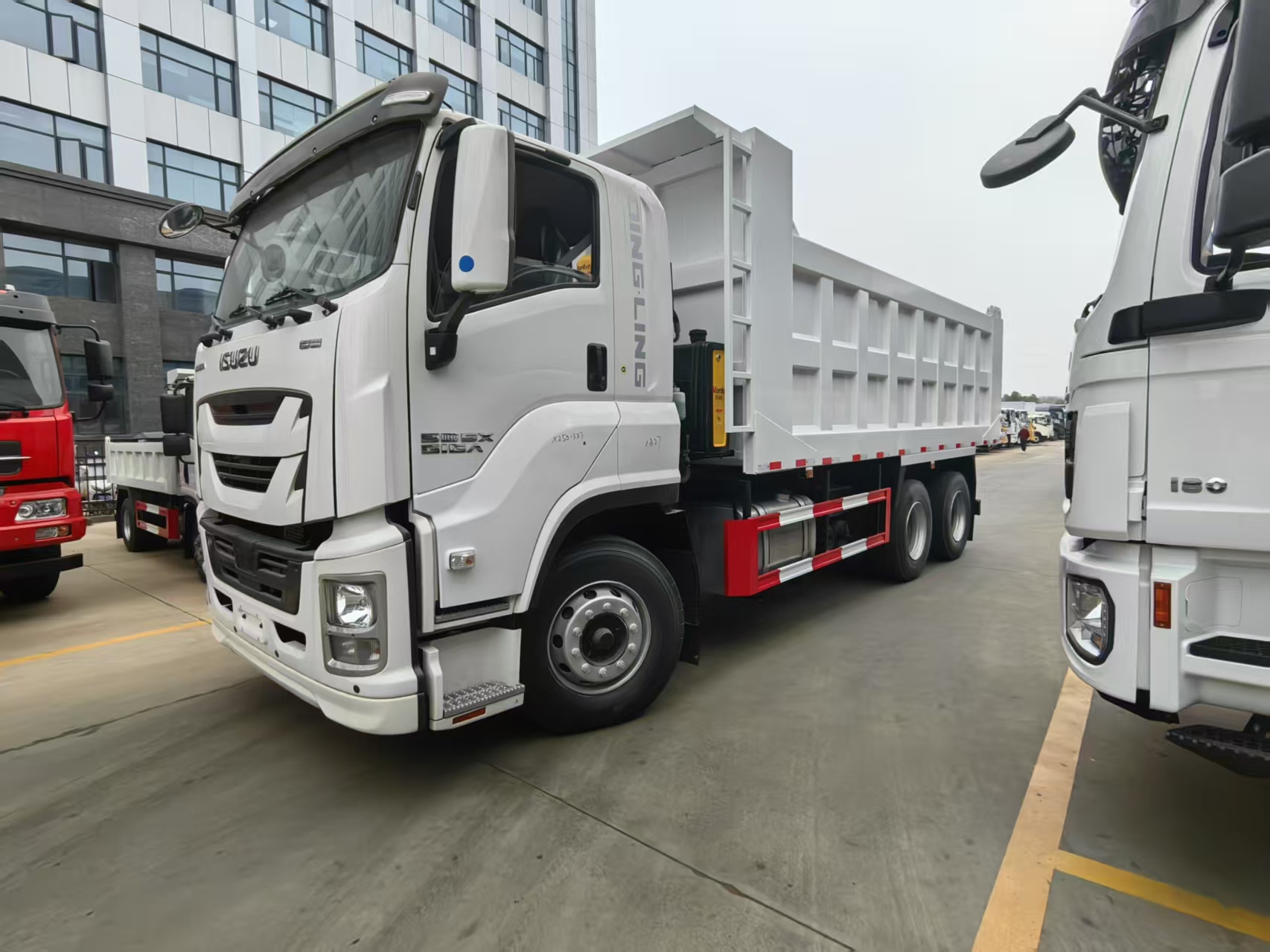

Pictures

GAC HINO700 heavy tipper trucks 8×4-图片4 GAC HINO700 heavy tipper trucks 8×4-图片5 GAC HINO700 heavy tipper trucks 8×4-图片6 GAC HINO700 heavy tipper trucks 8×4-图片7 GAC HINO700 heavy tipper trucks 8×4-图片8



Company Profile

Chengli Special Automobile Co., Ltd is a leading manufacturer of special trucks in China, with over 20 years of experience and development. As the core member of Chengli Truck Group, the company has registered trademarks of CHENGLIWEI and CLW.

With a capital of 2 billion RMB and a target output of 1.5 billion dollars by 2023, Chengli employs over 10,000 individuals in their state-of-the-art facilities spread across 500 acres. The company cooperates with renowned chassis manufacturers and offers a wide range of over 300 truck series, including tank, garbage, special working, cargo transport, and engineering trucks.

Chengli prides itself on solid technology, flawless inspection, advanced equipment, and flexible operation modes. All products are backed by a 1-year warranty, lifetime maintenance, and free technical service.

With a focus on efficiency and customer satisfaction, Chengli looks forward to expanding its global footprint and seeking more cooperation in the coming years.

GAC HINO700 heavy tipper trucks 8×4-图片9

Success Cases

Chengli Group, a leading player in China's special vehicle manufacturing, strives for innovation and excellence in producing world-class special vehicles. The Group views meeting international demands and exploring overseas markets as a strategy and a promise to its global customer base. Chengli is committed to technological research and product innovation, recognizing that enhancing product quality and performance is key to satisfying diverse global needs. With ambitions beyond the domestic market, Chengli eyes global opportunities for broader cooperation.

GAC HINO700 heavy tipper trucks 8×4-图片10

Africa, Southeast Asia, Central Asia, and the Middle East offer immense market potential for high-quality, cost-effective special vehicles. Chengli seizes this chance, planning to expand its sales and service network to deliver superior customer service. The Group's philosophy revolves around the "win-win" principle, which forms the foundation of its relationships with global customers and partners.
