Isuzu Guardrail Cleaning Truck


Product Introduction

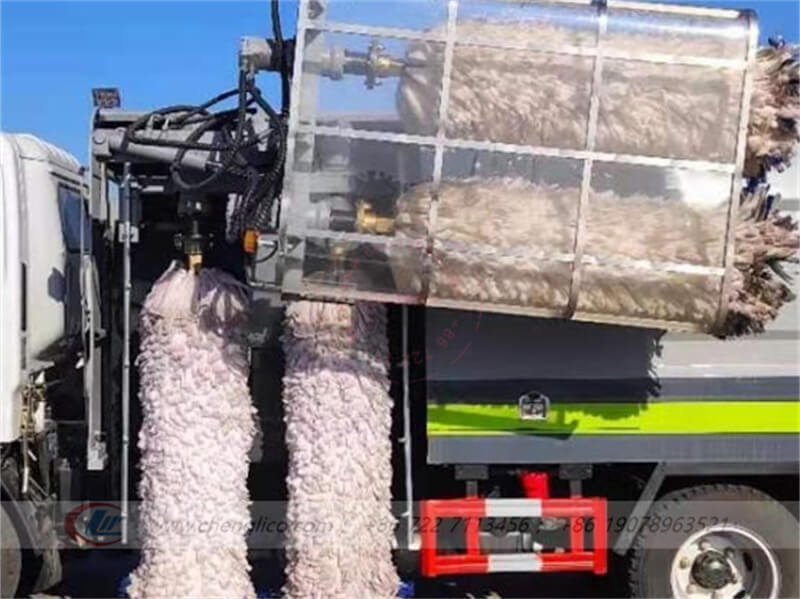

The guardrail cleaning truck is a specialized vehicle for cleaning city guardrails. The city road guardrail cleaning truck utilizes mechanical operations instead of manual work, possessing advantages in speed and cleanliness, significantly reducing the labor intensity of sanitation workers and improving cleaning efficiency. This transforms point-line road maintenance into three-dimensional maintenance, ensuring that there are no omissions in the overall road maintenance.Isuzu Guardrail Cleaning Truck-图片1文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

Product performance and features文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

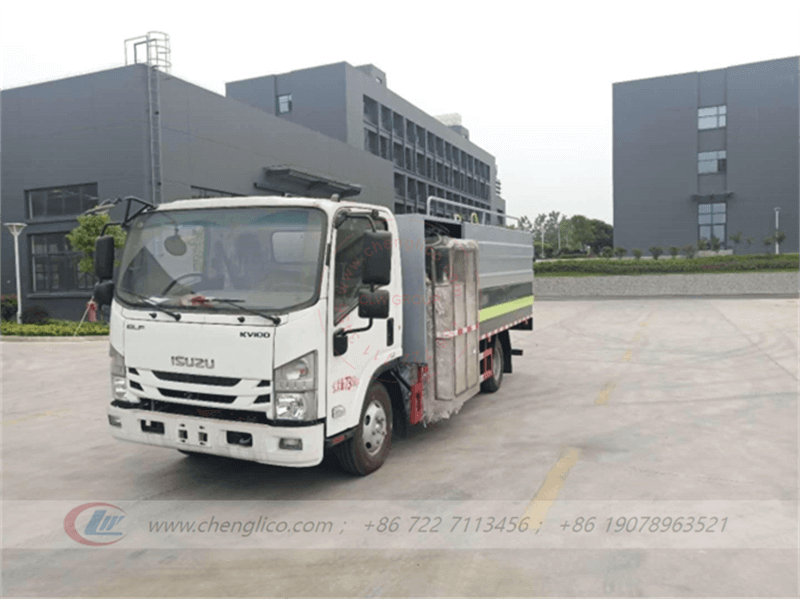

Cleaning speed is fast, mechanical operation is faster than manual work; high cleanliness and reliable safety are ensured; the possibility of accidental injury to workers on the road by passing vehicles can be avoided by optionally installing a sprinkler function.Isuzu Guardrail Cleaning Truck-图片2文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

Use of the guardrail cleaning truck文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

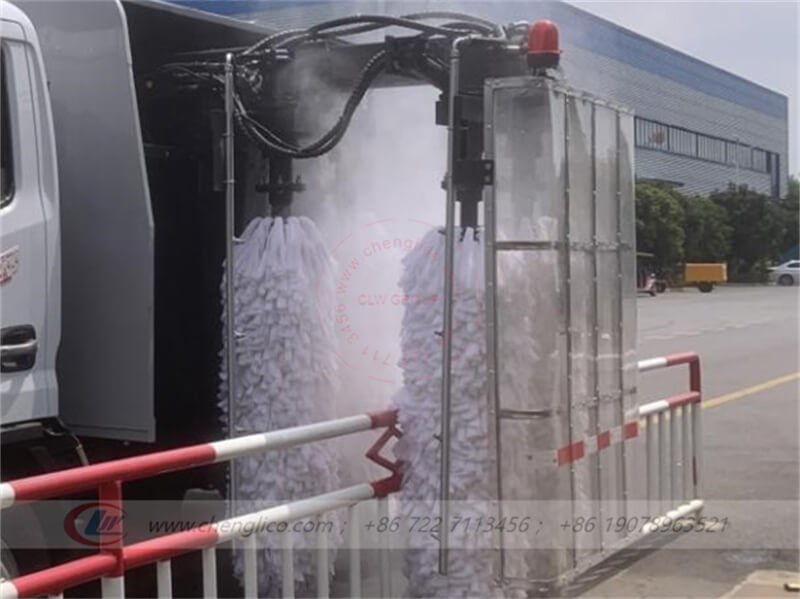

It can be used for cleaning city guardrails and various municipal facilities. The driver should maintain fine adjustments during operation, tightly clamp the guardrail, to achieve the best cleaning effect.Isuzu Guardrail Cleaning Truck-图片3文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

Product main technical parameters文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

Product Name guardrail cleaning truck Vehicle Model CL5072GQX6HL
Gross weight 7300(kg) Tank volume 5-6 m³
Rated quality 1885(kg) Overall dimensions 6900X2400X2650
Kerb weight 5220(kg) Wheelbase 3815(mm)
number of axles 2 Front suspension / rear suspension 1110/1975(mm)
Passengers in cab 3 maximum speed 95(km/h)
Approaching angle / departure angle 19/9(°) Axle load 2580/4720
Number of steel plate spring sheets 8/6+5 Front wheel track 1685
Type of fuel Diesel Rear  wheel track 1525
Chassis model QL1073BUKACY Type of fuel Diesel
Tire size 7.00R16文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

14PR,7.00-16 14PR

Number of Tires 6
Engine model 4KH1CN6LB Power 120 HP
tank materila Q235 carbon steel Tank thickness 4mm

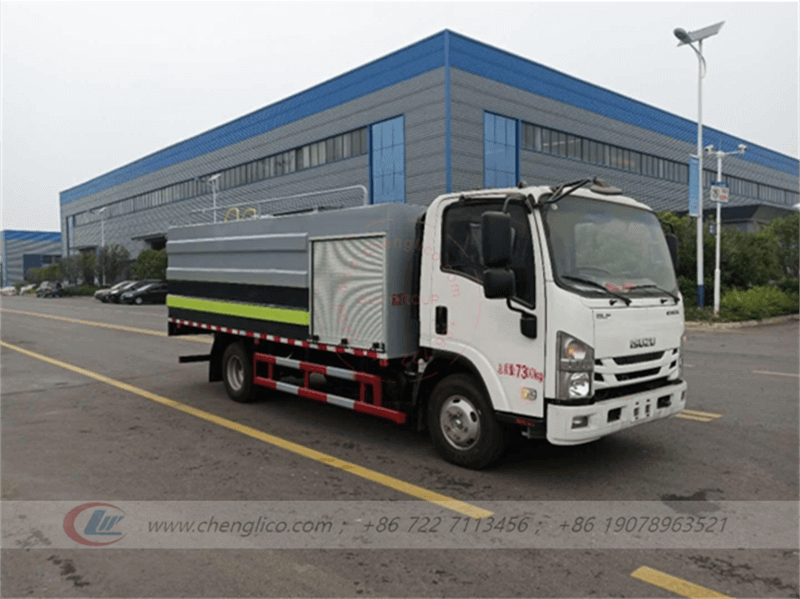

Isuzu Guardrail Cleaning Truck-图片4文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

During vehicle washing operations, the vehicle walking deceleration device can be activated to control the vehicle’s speed, effectively ensuring the cleaning efficiency. We employ an intelligent control system (electric-hydraulic control), with centralized hydraulic system control, making operations simple and allowing various operations to be completed within the driving cabin. A LED arrow light is located at the rear end of the vehicle. The cleaning device is located on the left rear side of the driving cabin, featuring a dual-sided cleaning device. Four brushes tightly grip the guardrail while rotating to scrub, assisted by high-pressure water rinsing. We use an electric-hydraulic control operation method for the isolation guardrail cleaning, with 6-8 spray nozzles installed front and rear. The vehicle is equipped with high and low-pressure water systems, making it convenient to choose and use.Isuzu Guardrail Cleaning Truck-图片5文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-

Working principle

After the guardrail cleaning vehicle enters a road with guardrails, the main engine of the vehicle drives it at a certain speed. The auxiliary engine is started, which drives the hydraulic oil pump. By controlling the horizontal telescopic cylinder, the roller brush mechanism is opened. By controlling the lifting cylinder, the height of the roller brush mechanism is adjusted. By controlling the roller brush swing cylinder, the outer roller brush is made to swing by 90°, bringing the vehicle close to the guardrail so that the roller brush can grip it. By adjusting the roller brush spacing adjustment cylinder, the distance between the outer roller brush and the guardrail is controlled. After the position is properly adjusted, the water pump is controlled to start water spraying from the nozzle; simultaneously, the roller brush motor drives the roller brush to start rotating, and the guardrail cleaning vehicle begins its guardrail cleaning operation. When the operation reaches the end of the guardrail, the vehicle can directly drive away from the guardrail. When the vehicle needs to drive away from the middle of the guardrail or transfer to another location, the outer roller brush is made to swing by 90° through controlling the outer roller brush swing cylinder, and then the vehicle is driven away from the guardrail.Isuzu Guardrail Cleaning Truck-图片6

Washing principle

Adopting a cleaning process with two rinses and two scrubs, both sides are cleaned simultaneously, making the cleaning more thorough. The cleaning process is as follows: First, two rows of spray water pipes in front of the brush roller spray water to thoroughly pre-wet the guardrail. During the forward movement of the vehicle body, the two middle rows of brush rollers sequentially scrub the guardrail. Finally, two rows of spray water pipes behind the brush roller spray water to rinse away the remaining dust.Isuzu Guardrail Cleaning Truck-图片7

Company Profile

Chengli Special Automobile Co., Ltd is a leading manufacturer of special trucks in China, with over 20 years of experience and development. As the core member of Chengli Truck Group, the company has registered trademarks of CHENGLIWEI and CLW.

With a capital of 2 billion RMB and a target output of 1.5 billion dollars by 2023, Chengli employs over 10,000 individuals in their state-of-the-art facilities spread across 500 acres. The company cooperates with renowned chassis manufacturers and offers a wide range of over 300 truck series, including tank, garbage, special working, cargo transport, and engineering trucks.

Chengli prides itself on solid technology, flawless inspection, advanced equipment, and flexible operation modes. All products are backed by a 1-year warranty, lifetime maintenance, and free technical service.

With a focus on efficiency and customer satisfaction, Chengli looks forward to expanding its global footprint and seeking more cooperation in the coming years.

Isuzu Guardrail Cleaning Truck-图片8

Success Cases

Chengli Group, a leading player in China's special vehicle manufacturing, strives for innovation and excellence in producing world-class special vehicles. The Group views meeting international demands and exploring overseas markets as a strategy and a promise to its global customer base. Chengli is committed to technological research and product innovation, recognizing that enhancing product quality and performance is key to satisfying diverse global needs. With ambitions beyond the domestic market, Chengli eyes global opportunities for broader cooperation.

Isuzu Guardrail Cleaning Truck-图片9

Africa, Southeast Asia, Central Asia, and the Middle East offer immense market potential for high-quality, cost-effective special vehicles. Chengli seizes this chance, planning to expand its sales and service network to deliver superior customer service. The Group's philosophy revolves around the "win-win" principle, which forms the foundation of its relationships with global customers and partners.
