Isuzu rear load truck

Comments

Application

The Isuzu trash truck rear loader, also known as a garbage compactor truck, is mainly composed of a car chassis, a box, a filler, an electro-hydraulic control system, etc. It is a new type of fully sealed structure garbage transport vehicle that integrates mechanics, electricity and hydraulics, it can not only be used with garbage compression stations, but also can be widely used in garbage transportation in urban residential areas, industrial areas, commercial areas, schools, parks, scenic spots and other places.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-rear-load-truck.html

Isuzu rear load trucks have a beautiful appearance and are simple and convenient to operate. It is equipped with a curved compression box with a capacity of 8CBM, and uses a push shovel to compress the garbage evenly. The vehicle is also equipped with advanced hydraulic systems and electrical control systems, which can realize automatic control operations and reduce the tediousness and danger of manual operation.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-rear-load-truck.html

From a safety perspective, Isuzu rubbish compactor trucks are equipped with a number of safety devices. There is an emergency stop button at the rear of the vehicle, which can stop work immediately in an emergency. The vehicle is also equipped with an anti-spill device and a sewage collection box to ensure that garbage will not leak during transportation and ensure the smooth progress of cleaning work.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-rear-load-truck.html

Isuzu refuse compactor trucks are widely used in urban streets, communities, industrial parks and other places. Its advantage is not only that it can remove garbage efficiently and quickly, but its environmental protection also makes many cities choose to use it. Isuzu compressed garbage trucks are indispensable equipment in urban cleaning work. Its appearance not only brings convenience to urban cleaning, but also contributes greatly to urban environmental protection.Isuzu rear load truck-图片1文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-rear-load-truck.html

Key Features文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-rear-load-truck.html

  1. Efficient compression ratio: This garbage truck adopts two-way compression technology, which can efficiently compress garbage, reduce garbage volume, and save transportation costs.
  2. Automatic loading and unloading: Through the hydraulic system, automatic loading and unloading can be realized, which is easy to operate and reduces labor costs.
  3. No pollution to the environment: The compactor body is fully sealed, so the garbage will not leak during transportation, thus avoiding environmental pollution.
  4. Large-capacity compactor body: The vehicle is equipped with a large compactor box, which can accommodate more garbage and reduce the frequency of garbage collection.
  5. Automated operation: The vehicle is equipped with an automated operating system, which can be operated by remote control, which is convenient and fast.
  6. High safety performance: The vehicle has high safety performance and is equipped with a variety of safety devices, such as ABS, anti-spill devices, emergency stop buttons, etc., to ensure the safety of the operator.
  7. Easy maintenance: The design of the truck takes into account the convenience of maintenance, such as easy-to-replace wear parts, easy-to-clean materials, etc., which reduces maintenance costs.Isuzu rear load truck-图片2

Specification文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-rear-load-truck.html

Specifications
Vehicle brand Isuzu
Overall dimension 8000×2300×2650 mm
Gross vehicle weight 11000 kg
Curb weight 6800 kg
Loading weight 6000 kg
Wheelbase 4175 mm
Front/Rear axle 4000/7000 kg
Cabin Left Hand Driving, 3 Passengers Allowed, with Air Conditioner, Radio, ABS
Engine model 4HK1-TC51
Power 140KW/190HP
Displacement 5193 ml
Emission standard Euro 5
Fuel type Diesel
Max driving speed 90 km/h
Gear Box ISUZU MLD,6 forward, 1 reverse, manual
Brake Air brake
Tire 235/75R17.5, 6pc with 1 spare tire
Garbage compactor Capacity 8CBM
Material 4mm carbon steel for compactor body
Sewage tank 2 units, carbon steel
Ways of Loading Rear loading with bucket lifting system
Compaction ratio 1:2.5
Control system CAN-bus,0ne control panel on the side of tailgate, one control panel in cabin, manual control valves behind the cabin
Compressing system 1. Equipped with sealed compactor body, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all can be operated by 1 person
3. Sewage water collection tank to avoid any pollution during working
4. Large pressure, good leakage proof, convenient operation
5. Electrical control panel for compacting system.
6. Cycling time<14~18s
Remarks 1. Color is optional
2. Customized LOGO painting as per customer request
3. Stainless steel waste water tank is optional

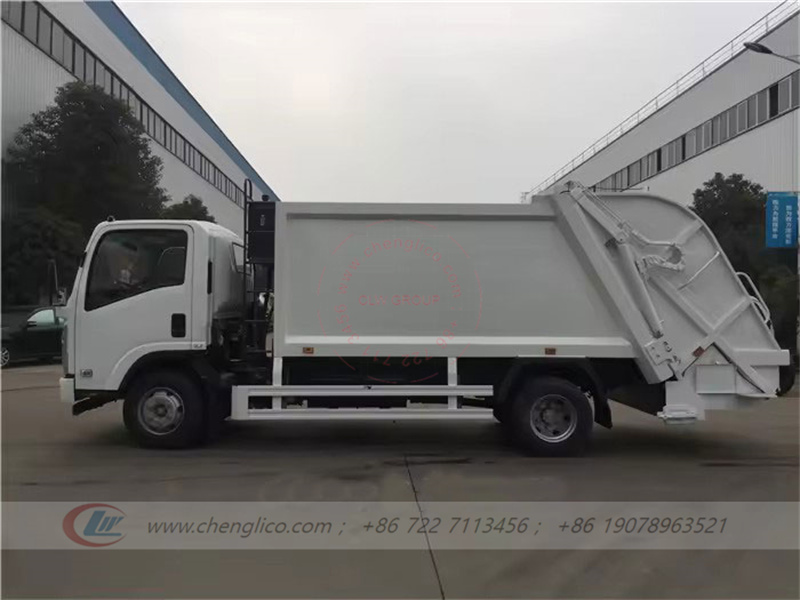

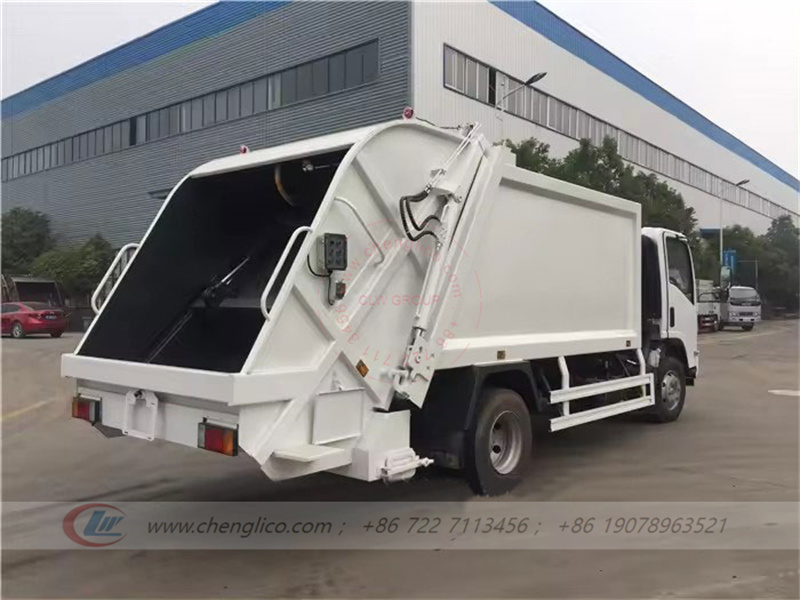

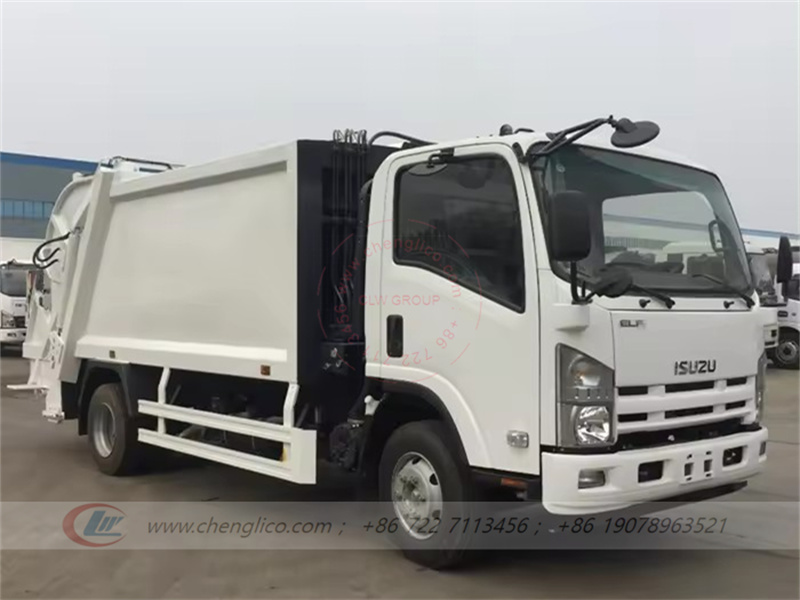

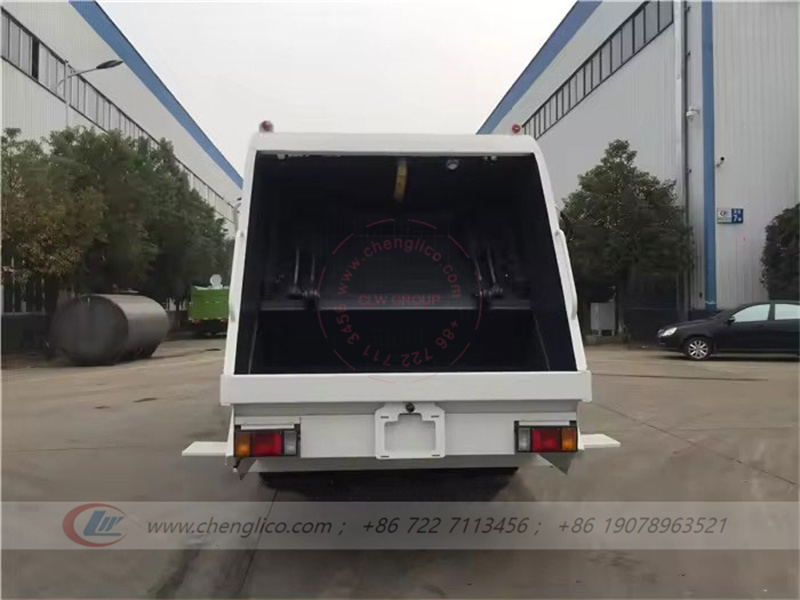

PicturesIsuzu rear load truck-图片3 Isuzu rear load truck-图片4 Isuzu rear load truck-图片5 Isuzu rear load truck-图片6文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-rear-load-truck.html
