Application

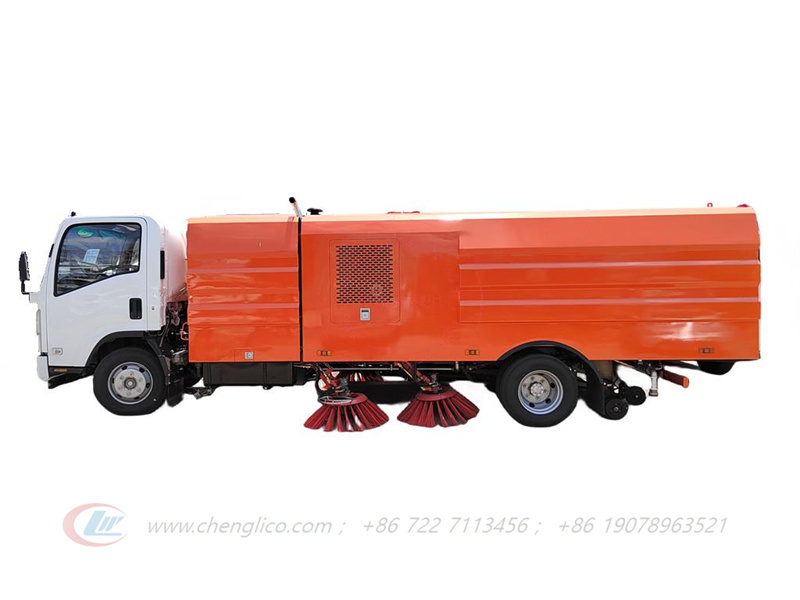

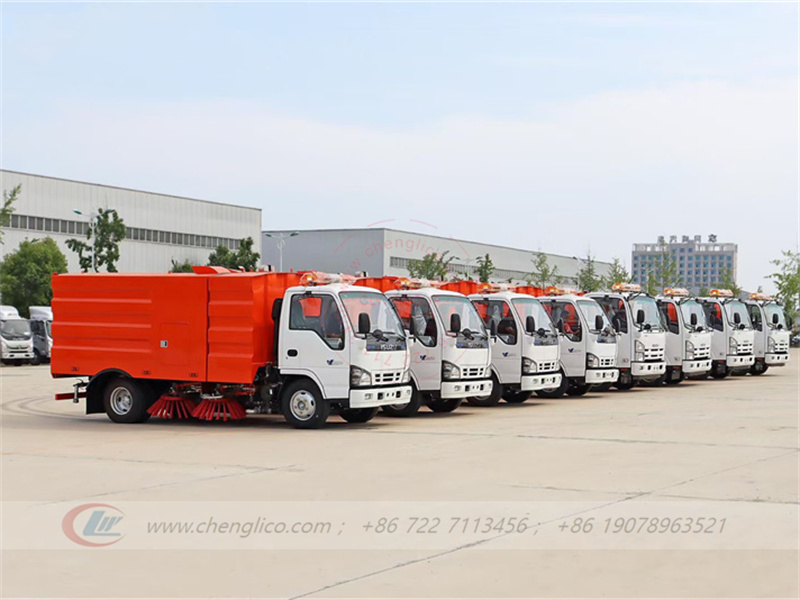

Road sweeper is a new generation of medium-sized and environmental protective vehicle, combined with suction type and road sweeping.It's mainly applied to city streets, municipal square, large-scale mechanized factory and so on, with high efficiency, advanced technical performance, good appearance. Equipped with 4 sweeping brush plate and 88pcs brushes, CUMMINS B140 33 model diesel engine with 140 hp; Italian motor; French control switch; Joint venture solenoid valve group; Maintenance-free self-separate clutch; Maintenance-free fan; Stainless steel water tank and dustbin; Rear LED arrow lights, manual pump for emergency system. For all Isuzu vacuum road sweeper cleaner trucks from us matched with English version Operation Manual, which can help customers better know how to usage and maintenance the Isuzu sweeper trucks.Isuzu Road sweeper-图片1

Key Features

  1. Control box in cabin, centralized control of all electric system, convenient to operate. language can be customized as English, French, Russia, Arabic, etc.
  2. Four sweeping plate with matched totally 88pcs sweeper brushes and suction nozzle working together for an excellent sweeping performance.
  3. Both sides of sweeping brushes can work at the same time or only one side work dependently. In cabin electric control.
  4. Stainless truck body system, including 2000liters water tank and 6000liters dust tank.
  5. Originally imported hydraulic system key parts. Motor and Hydraulic valves.
  6. Capacity: 2cbm, 4cbm, 5cbm, 5.5cbm, 6cbm, 7cbm, 8cbm, 10cbm. 12cbm, 18cbm, 22cbm

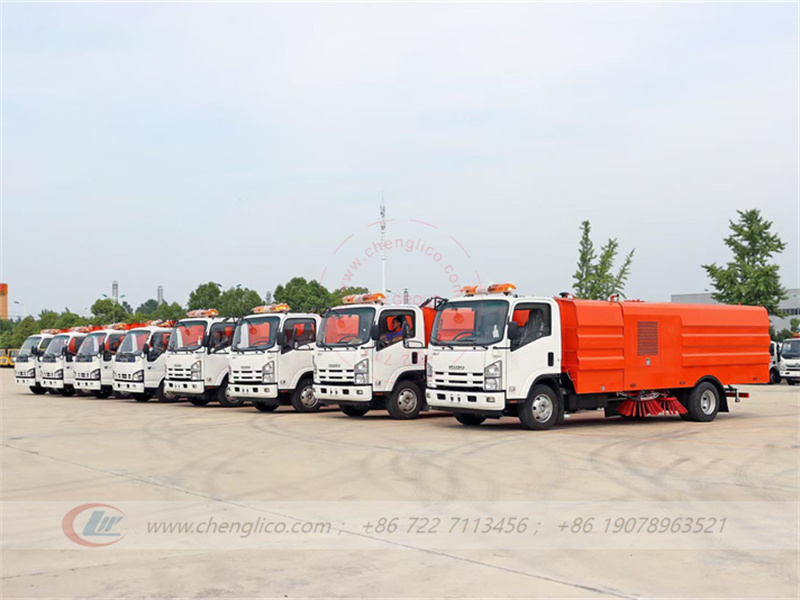

  7. Road sweeper mounted on original Japanese ISUZU truck chassis NKR, NPR, NQR, FTR, FRR, FVR, GIGA.Isuzu Road sweeper-图片2

Main specifications

Newly designed ISUZU Road sweeper truck also called street sweeper truck, municipal vehicle, sweeping vehicle, street cleaner, sweeper cleaning truck, street cleaning vehicle.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-road-sweeper.html

Which is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This sweeper truck shall be suitable for dry type cleaning jobs as well as dust suppression with water spray in the road sides and narrow lanes. The Isuzu street sweeper truck is composted by chassis, auxiliary engine, air blower, magnetic valves, dustbin, water tanker, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc. Isuzu street cleaner truck mounted with 4 brooms sweeping system and suction system combine working high efficient. Water sprinklers equipped on brooms ,suction nozzles, effective dust suppression.
文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-road-sweeper.html

ISUZU NPR ELF 700P Road Sweeper truck, Isuzu Street Cleaner Truck
Item No. Parameters
Overall Dimension 7150*2450*2760 mm
Drive model 4x2, new condition, LHD / RHD
Gross weight 10000 kg
Curb Weight 5250 kg
Wheel Base 3815 mm
Front/rear Overhang 1680/1650 mm
Front/rear Axle Capacity 4000 kg / 7000 kg
Spring 8/10+6
Engine ISUZU ENGINE, 4HK1-TC, Diesel Engine, Four Stroke, 4 Cylinder in line.
Engine horsepower 190 HP
Displacement 5.193 L(Diesel)
Max Driving Speed 90 km/h
Gear Box ISUZU MLD brand 6 Forward Gear, 1 Backward Gear
Tire 235/75R17.5,  6 pieces with 1 spare tire.
Upper part of the road sweeper truck
Tank Garbage tank Tank material Stainless steel 304
Tank volume(cbm) 6.0 cbm
Water tank Tank material Stainless steel 304
Tank volume(cbm) 2.0 cbm
Auxiliary engine Model CUMMINS Diesel Engine B140 33
Power(kw) 103 kw, 140 HP
Motor Brand Imported Italian brand motor
Switch of operation Brand Imported French Schneider brand switch
Brush Quantity(pc) 4 pcs
Diameter of brush 850 mm
Working area(m) 3.0-3.5 m
Operation detail Working speed 3-35 km/h
Working width 2.8-3.2 meters
Max. Operation ability 45000 m2/h
Max. Sucking dimension 100-120 mm
Sweeping rate 95%
Brush extend dimension 400 mm
Hydraulic system Model Electrical control type.
Pressure of hydraulic system 16 Mpa
Volume of the hydraulic oil tank 60 L
Temperature of hydraulic oil 60°
Main part Pump, hydraulic motor, hydraulic cylinder and electromagnetic valve
Remarks 1, With water sprayer-bar
2, Rear vacuum cleaner
3, Blower
4, Rear LED pilot lamp
5, Self unloading box body
6, The color will be designed on basis of your requirements.

Isuzu Road sweeper-图片3文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-road-sweeper.html

What is the significant and influence for ISUZU NPR road sweeper trucks to Yemen, Dubai, Oman, etc.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-road-sweeper.html

The ISUZU NPR road sweeper is a vehicle specially designed for cleaning and maintenance in urban environments. This vehicle has important value and influence for the construction of the Yemen, Dubai and Oman.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-road-sweeper.html

  1. First of all, the ISUZU NPR road sweeper can improve the cleanliness level of Yemen cities. As a developing country, Yemen often has a large amount of garbage, dust and debris in its cities, causing many problems to the urban environment. The ISUZU NPR street sweeper can efficiently clean garbage and dust on the road surface, making urban streets cleaner and more orderly. Through the daily operation and cleaning operations of sweepers, pollution and garbage accumulation can be reduced, and the living environment of urban residents can be improved.
  2. Secondly, the ISUZU NPR road cleaner sweeper truck helps improve the air quality in Dubai cities. Accumulation of trash and dust can lead to air pollution and an increased risk of respiratory illnesses. Through timely sweeping and vacuuming, ISUZU NPR sweepers truck can effectively reduce the spread of dust and pollutants, improve the quality of urban air, and protect the health of residents.
  3. In addition, the ISUZU road sweeper can also improve safety in Yemeni cities. Debris and garbage on the road not only pose safety hazards to pedestrians and vehicles, but may also lead to traffic accidents. The ISUZU NPR road sweeper can clear obstacles on the road, ensure smooth roads, and reduce the incidence of traffic accidents. Its efficient cleaning capacity and stable performance can provide good protection for road traffic in Oman cities.
  4. In addition, the Isuzu road cleaning vacuum truck is also energy-saving and environmentally friendly. It uses advanced cleaning and garbage disposal technology to reduce energy consumption and carbon emissions. This helps protect Yemen’s natural environment and resources and promote sustainable development.

To sum up, the ISUZU NPR road washing cleaning truck has important value and impact on the construction of the Yemen and Oman country. It can improve urban cleanliness, improve air quality, enhance road safety, and is also energy-saving and environmentally friendly. Through the introduction and use of this vehicle, it can have a positive impact on the development of Yemen and Dubai cities and the quality of life of residents.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-road-sweeper.html

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-road-sweeper.html

Pictures

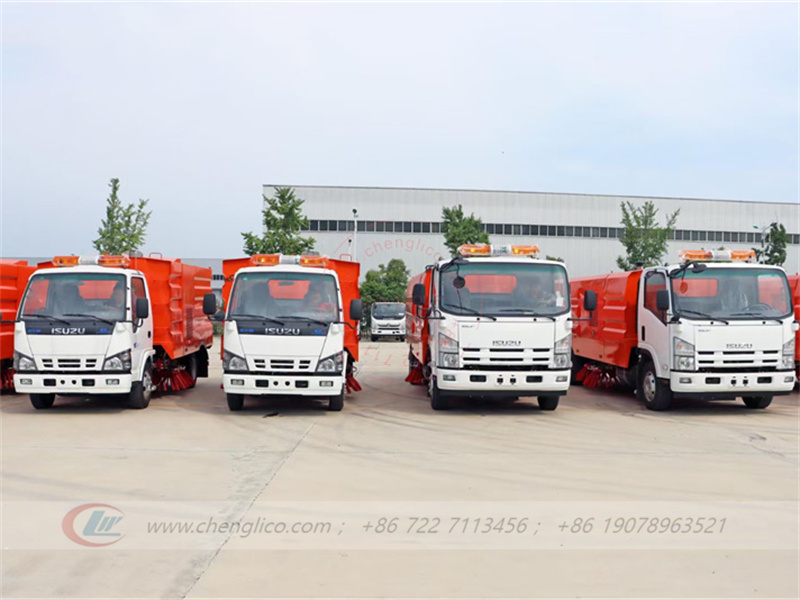

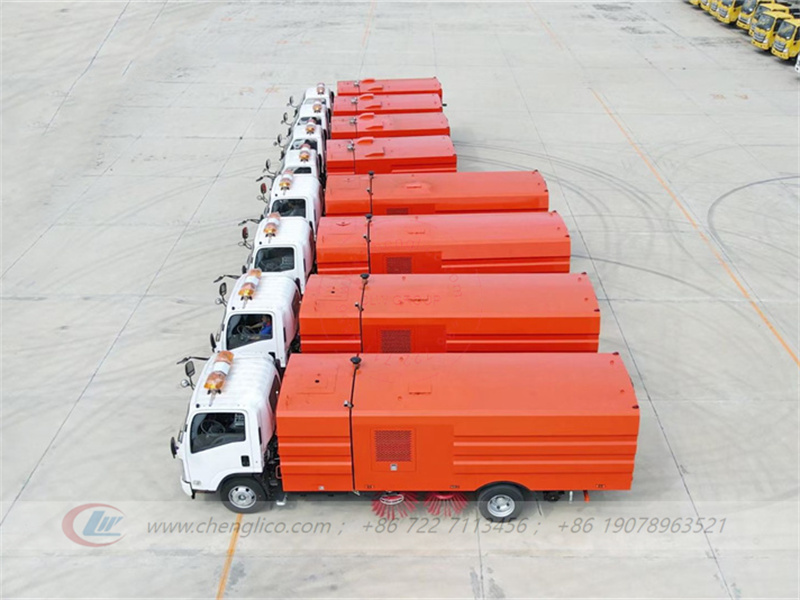

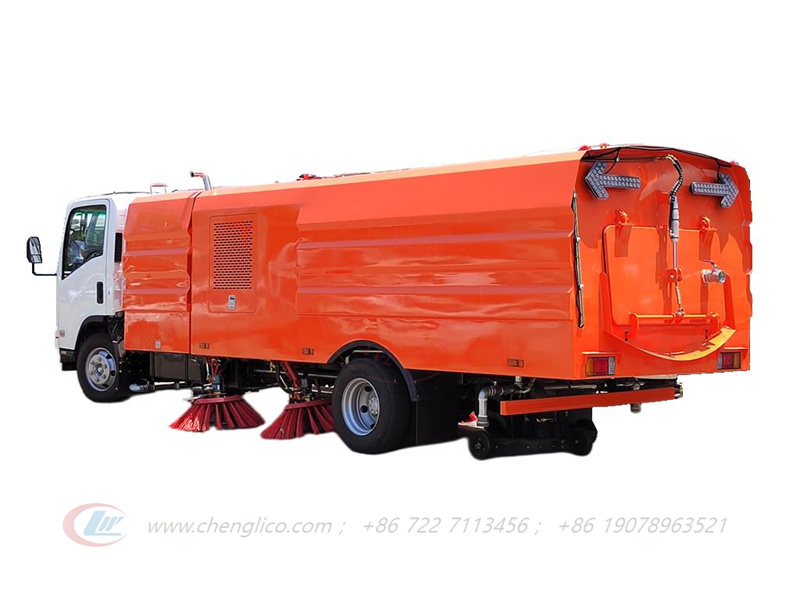

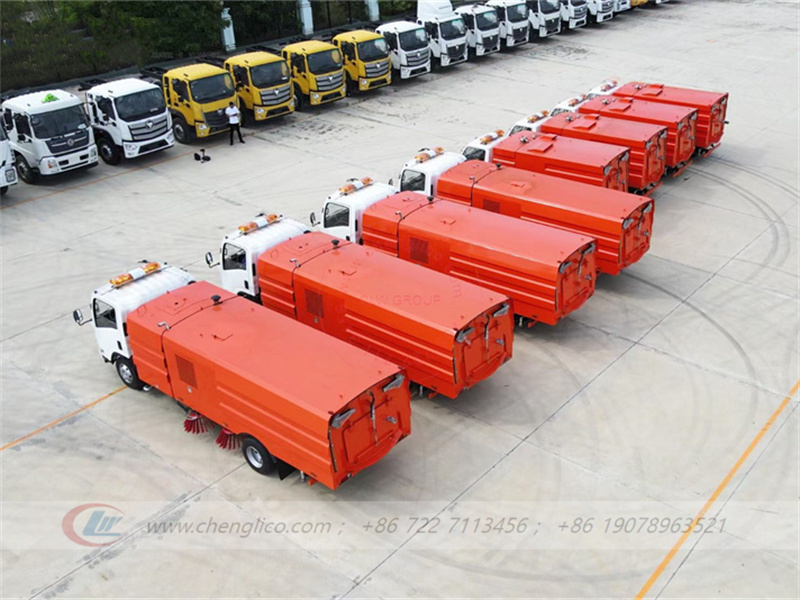

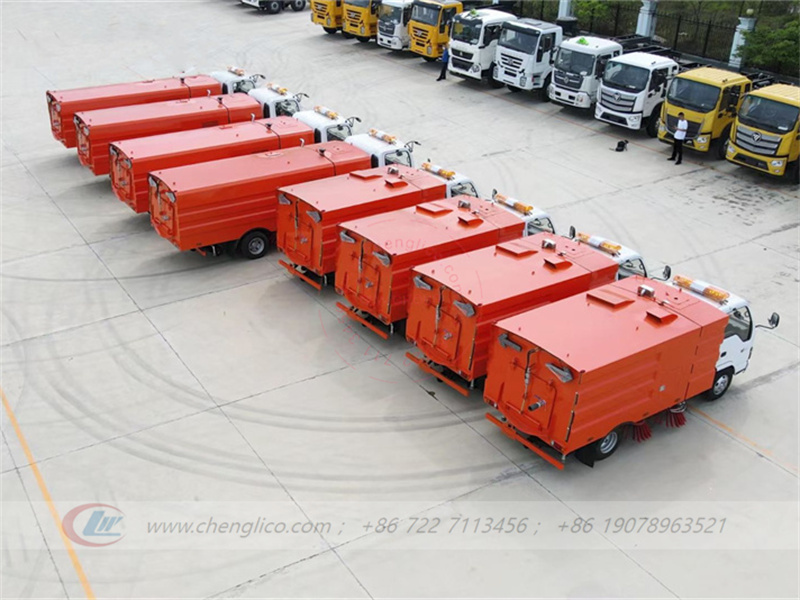

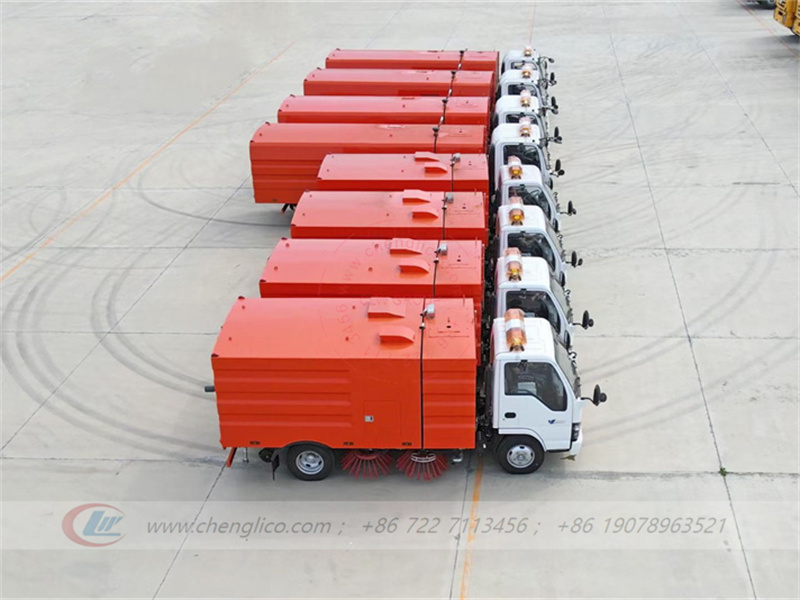

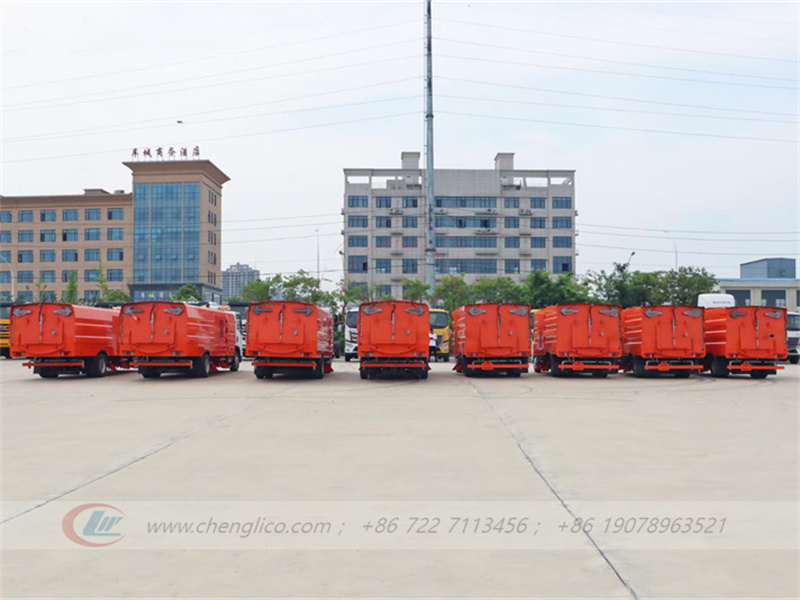

Isuzu Road sweeper-图片4 Isuzu Road sweeper-图片5 Isuzu Road sweeper-图片6 Isuzu Road sweeper-图片7 Isuzu Road sweeper-图片8 Isuzu Road sweeper-图片9 Isuzu Road sweeper-图片10 Isuzu Road sweeper-图片11文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-road-sweeper.html
