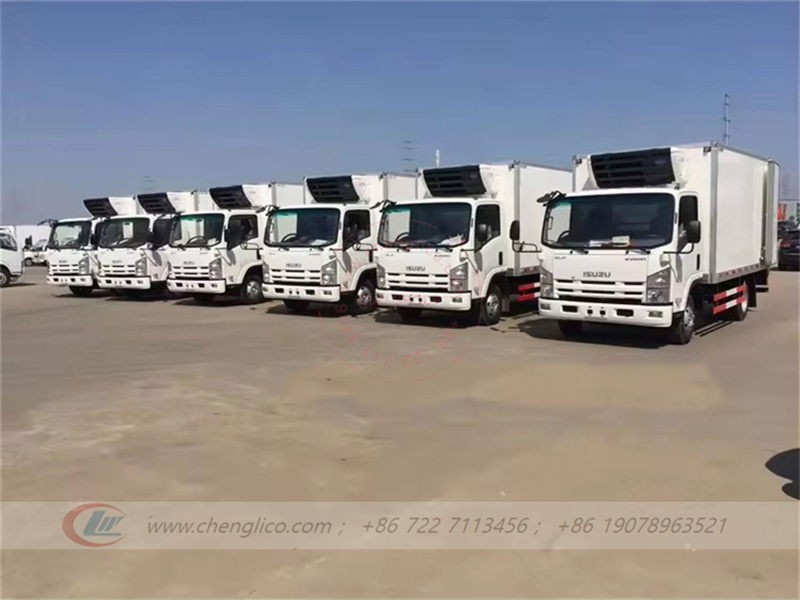

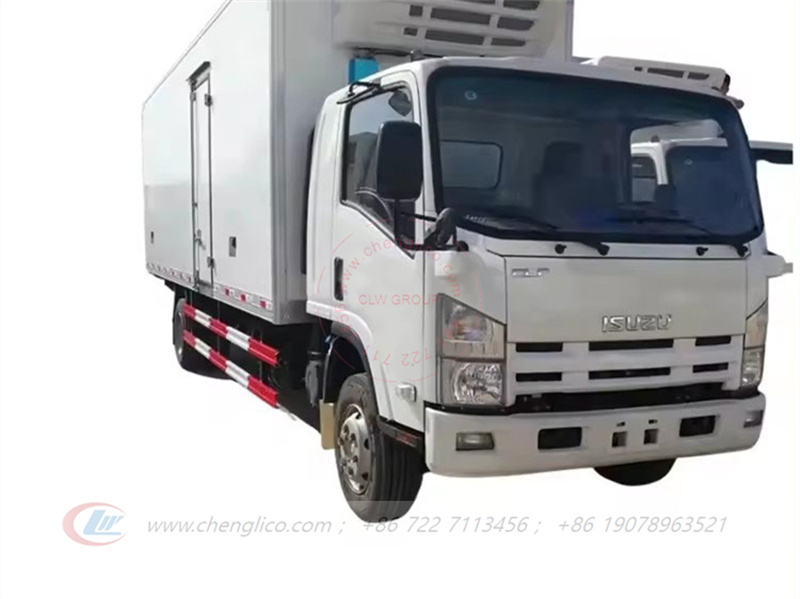

Isuzu refrigerated truck

Comments

Application

The Isuzu refrigerated truck is a high-performance, high-quality cold chain transport vehicle equipped with high-quality Thermo King refrigeration unit. It is widely used in food, pharmaceuticals, chemicals and other fields. The vehicle uses advanced refrigeration technology to ensure that the goods maintain a constant temperature during transportation, effectively preventing the goods from deteriorating and being damaged.

Isuzu refrigerated truck-图片1文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

Key Features

The van body is made of high-quality materials.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

Good thermal insulation properties.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

The interior of the cabin is spacious and comfortable。文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

Equipped with an advanced intelligent control system, allowing the driver to easily control the operating status of the vehicle.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

Offers excellent fuel economy and low maintenance costs.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

Efficient engine and energy-saving refrigeration system to effectively reduce fuel consumption and operating costs.Isuzu refrigerated truck-图片2文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

Main specifications

Chassis information
Chassis ISUZU 600P
Cabin 2 Passengers
Drive 4 × 2 Left-hand driving or Right-hand driving
Wheelbase 3360 mm
Gross vehicle weight 7300 kg
Tyre Size 7.00R16
Quantity 6+1 Spare
Brake Service Front disc/Rear drum hydraulic brake
Parking Central drum brake
Auxiliary Exhaust brake
System ABS (anti-lock brake system)
Transmission Gear 6-Speed (manual)
Steering Power-assisted
Auxiliary Clutch booster
Engine Model 4KH1CN5HS
Fuel type Diesel
Intake Turbocharged
Form Water cooling
Cylinder 4 (In-line)
Displacement 2999 ml (EURO 5)
Max. Power 130 hp (96 kw)
Upper body
Refrigerated Van Dimension (internal) 4000*2000*2000 mm (L*W*H)
Thickness Roof 80 mm
Wall 80 mm
Floor 80 mm
Material Inner Glass fiber reinforced plastics (GFRP)
Outer
Insulation Material Polyurethane foam (PUF)
Thickness 8 mm
Assembly Floor Non-slip checkered plate
Door/lock Stainless steel
Seal Industrial-purpose rubber
Refrigerator unit Brand THERMO KING
Model RV380
Temperature -18~0ºC
Refrigerants Model R404-A
Charge 1.8 kg
Refrigeration capacity
Driven by Truck engine 0ºC -20ºC
4050 w 2300 w
Compressor
 Air volume 1500 m³/h
Weight (Approximation)
 Evaporator 18 kg
 Condenser 30 kg
Dimension
 Evaporator 1080*627*220mm (L*W*H)
 Condenser 1023*435*316 mm (L*W*H)
Accessories
 Defrosting Hot gas defrost (Automatically)
 Adjustment device Electronic digital display
 Safety protectation High and low pressure switch

Isuzu refrigerated truck-图片3文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/isuzu-refrigerated-truck.html

What are the correct maintenance and repair methods for Isuzu freezer trucks?

The maintenance of Isuzu freezer trucks is very important. Only by performing correct maintenance on the equipment on time can the normal use of the equipment be ensured and the service life of the equipment extended.

  1. Normally, the refrigeration unit is maintained every 500h to 700h. It is necessary to replace the oil filter element, fuel filter element, and air filter element; and pay attention to check the tightness of the belt and whether there is any leakage in the refrigeration system.
  2. Routine maintenance of the insulated compartment of Isuzu refrigerated trucks: Check the exterior surface of the van body, the interior surface of the van body, the edges and corners inside and outside the van, the interior floor of the van, as well as the internal lighting, refrigeration air outlets, etc.
  3. Do not scratch the outer surface of the Isuzu refrigerated carriage. Otherwise, on the one hand, it will reduce the ability of the fiberglass to withstand pressure and make aging and deformation more likely. On the other hand, the polyurethane filled inside will leak and affect the insulation performance of the carriage.
  4. When maintaining the interior surface of the Isuzu refrigerated truck, the temperature control must be properly adjusted. Do not let the interior surface of the van body freeze. If the air humidity is relatively high, try to pack the refrigerated products, especially the aquatic products, and seal them well to reduce the risk of refrigeration.Isuzu refrigerated truck-图片4
