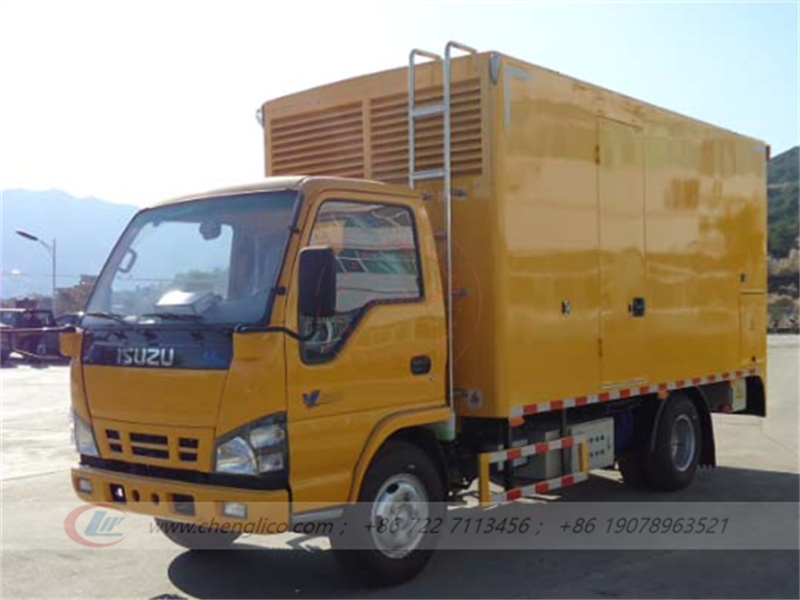

mobile power supply station vehicle

Comments

Application

The low noise mobile power station is excellent in providing power support for matched vehicle, electric equipment used under field condition, power-off or no-power remote regions and disaster-hit areas.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

- mining company, power company, oil field, exterior shooting of film companies, field drill文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

- emergency rescue文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

- frontier defence, rural healthcare文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

- field working of army / police / armed police文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

The low noise mobile power station consists of vehicle generator system, fixed shelter assembly, modified chassis, electrical control system, ventilating system, noise reduction system, cable management system, lifting illumination system, etc.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

And the generator on the low noise power station vehicle is delicately selected from well-known generator brands like KOHLER, CUMMINS, KIPOR, etc.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

You are also free to select your desired brand. This mobile power station can be used as emergency power station. If the power station trailer does peek your interest, please contact us right now for more information.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

Key Features文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

Good maneuverability, used for remote emergency power supply文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/mobile-power-supply-station-vehicle.html

Equipped with Wilson generator

Fire extinguisher and emergency stop switch equipped

Well sealed, rainproof, snow-proof and dustproof

Reasonable structure, excellent quality with low noise and easy to operate



Power Supply Function

  • Ø  Power distribution cabinet on the right of vehicle, equipped with gauges. 8 route 5kW power distributed to other vehicles, 1 route 20kW for starting power, 2 route 10kW for illumination. Power distribution equipped with anti-leakage current protection switch.



  • Ø  Imported Wilson P100E generator powered by diesel, low consumption and low noise. Three phases four lines Y-shape connected. Level H insulation, neutral point grounded. Protection applies IP22 (NEMA 1) Standard.



Specification

Product Wilson Diesel Generator
Product Model P100(380/220V,50HZ)
Output 100kVA 80kw
Dimensions(L*W*H mm) 2600*1100*1700
Weight(kg) 1600
Diesel Motor Model Perkins 1006TG2A
Generator Model LL3014B
Cylinder 4 (inline)
Cylinder Volume( L) 5.99
Cylinder Bore /Stroke( mm) 100.0/127.0
Compression Rate 16.0:1
Frequency (Hz) 50
Rev (rpm) 1500
Motor Shaft Power(kW) 105
Brake Pressure (kPA) 1404
Piston Speed (m/sec) 6.35
Fuel Consumption( P100E l/hr) 23.9
Smoke Discharge Heat Radiation (kW) 68.7
Cooling Heat Radiation (kW) 68.1
Total Heat Dissipation (kW) 44.6
Smoke Discharge Temperature (℃) 576
Wind Discharge (m3 /min ) 174
Air Discharge (m3/min) 5.9
Smoke Discharge (m3 /min ) 17.3



Chassis Technical Data

Chassis ISUZU NKR77
Dimensions(L*W*H mm) 7020×2260×3358
Wheelbase(mm) 3815
Wheel Tread(F/R mm) 1110/2095
Seating Capacity 2
Curb Weight(kg) 6800
Total Weight(kg) 9995
Engine 4HK1-TC
Engine Type Diesel inline 4 cylinders
Max Power(kW/rpm) 129/3600
