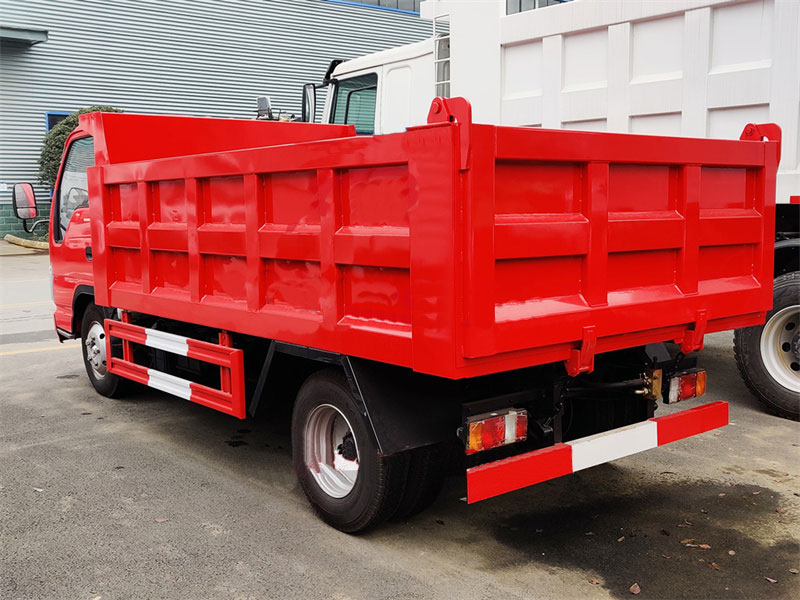

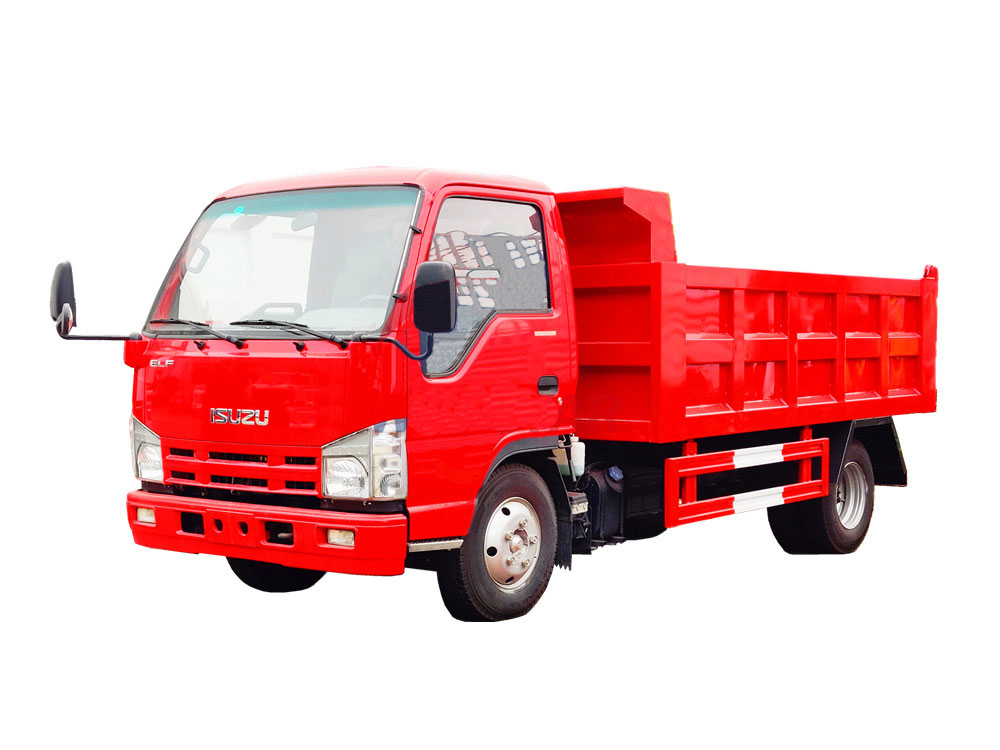

4KH1 3ton Tipper Lorry Isuzu

Comments

Description:

Isuzu mini heavy load dump truck should have a reasonable body design and a simple and beautiful appearance. The vehicle body is compact and moderate in size, making it suitable for narrow urban roads. Use high-strength, lightweight materials to improve safety, energy conservation and environmental protection. Equipped with an efficient and energy-saving power system, it makes full use of electrification technology to reduce energy consumption and emissions, while having powerful power output and torque. It has a good suspension system and fixing devices and can carry all kinds of goods stably. The cabin is spacious and comfortable, equipped with humanized driving seats and operating equipment to reduce driving fatigue and improve work efficiency. Isuzu mini heavy load dump truck combines features such as reasonable design, energy saving and environmental protection, intelligence, stability, and comfort to meet the needs of various work scenarios and improve work efficiency and production quality.4KH1 3ton Tipper Lorry Isuzu-图片1

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

Specifications

Description ISUZU Mini Cabin Dump Truck
Item Isuzu dump truck
Model Isuzu NKR
Cabin Isuzu single cabin
whole vehicle main
dimension
Overall dimensions (L*W*H)mm 5800*2350*2380 mm
Dimensions of dump body  (L*W*H)mm 3100*2250*1800 mm
Driving type Left/Right hand drive 4×2
Wheel base 3360
Weight data Curb weight (kg) 2800
Rated payload(kg) 4000
Person in cab (persons) 3
whole vehicle main
performance
Max.speed(km/h) 90
Max.slope of climb(%) 25
Min.turning radius (m) 7.5
Engine Engine model 4KH1CN5LS
Engine type Vertical, water-cooled, four-stroke,
turbocharged and inter cooled
Emission standard Euro5
Displacement (L) 2.99L
Rated power (KW) 98 hp
Max torque (N.m/rpm) 220N.M/ 1900-2100 r/min
Steering gear type Power steering
Brake system Service brake and boosting type Air brake
Parking brake Central drum brake
Auxiliary brake Air brake
Tyre size 700R16
Electric system Rated voltage 24V
Battery 100Ah
Dump Performance Loading Capacity 3-4 tons
Body Material High performance carbon
Plate Thickness Front/Side are 3mm
Control System Rear/Side are 4mm
Hydraulic Lifting Hydraulic
Discharging System Middle lifting device
Lifting Time Tipping 45 degree
Lowering Time 20 s
Tailgate 15 s
Drop side Auto release
Painting Detachable
Color & Logo Two primers,and one final paint coating
Loading Capacity According to wish
Factory Standard Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps...
Documents English operation manual, Spare parts list, and all necessary export docs.
Optional equipment 1, Dust bin lifting system (with any option)文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

2, Rear vision camera文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

3, Italy imported multi-way valve文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

4, Optional stainless steel waste water tank

4KH1 3ton Tipper Lorry Isuzu-图片2文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

 文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

The scenarios where Isuzu mini heavy load dump truck can be used are as follows:文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

  1. Construction site: used to transport construction materials, such as sand, bricks, cement, etc.
  2. Agricultural field: used to transport crops, feed, pesticides and other agricultural supplies.
  3. Garbage disposal: used to transport garbage or waste to garbage treatment plants or landfills.
  4. Iron ore and coal mine transportation: used to transport mineral resources such as ore and coal.
  5. Municipal engineering: used to transport land, sand, construction waste, etc.
  6. Waste transportation: used to remove and transport waste from engineering sites, excavation sites or building ruins.
  7. Cement mixing station: used to transport concrete materials to the construction site.
  8. Ports and terminals: used to transport goods to the terminal and perform loading and unloading operations.
  9. Logistics distribution: used for urban logistics distribution, such as transporting goods to stores, supermarkets, etc.4KH1 3ton Tipper Lorry Isuzu-图片3Company Profile

    Chengli Special Automobile Co., Ltd is a leading manufacturer of special trucks in China, with over 20 years of experience and development. As the core member of Chengli Truck Group, the company has registered trademarks of CHENGLIWEI and CLW.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

    With a capital of 2 billion RMB and a target output of 1.5 billion dollars by 2023, Chengli employs over 10,000 individuals in their state-of-the-art facilities spread across 500 acres. The company cooperates with renowned chassis manufacturers and offers a wide range of over 300 truck series, including tank, garbage, special working, cargo transport, and engineering trucks.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

    Chengli prides itself on solid technology, flawless inspection, advanced equipment, and flexible operation modes. All products are backed by a 1-year warranty, lifetime maintenance, and free technical service.文章源自Isuzu Tank truck, Isuzu Garbage Truck, Isuzu Dump Truck...-https://www.chinaisuzutruck.com/4kh1-3ton-tipper-lorry-isuzu.html

    With a focus on efficiency and customer satisfaction, Chengli looks forward to expanding its global footprint and seeking more cooperation in the coming years.

    4KH1 3ton Tipper Lorry Isuzu-图片4

    Success Cases

    Chengli Group, a leading player in China's special vehicle manufacturing, strives for innovation and excellence in producing world-class special vehicles. The Group views meeting international demands and exploring overseas markets as a strategy and a promise to its global customer base. Chengli is committed to technological research and product innovation, recognizing that enhancing product quality and performance is key to satisfying diverse global needs. With ambitions beyond the domestic market, Chengli eyes global opportunities for broader cooperation.

    4KH1 3ton Tipper Lorry Isuzu-图片5

    Africa, Southeast Asia, Central Asia, and the Middle East offer immense market potential for high-quality, cost-effective special vehicles. Chengli seizes this chance, planning to expand its sales and service network to deliver superior customer service. The Group's philosophy revolves around the "win-win" principle, which forms the foundation of its relationships with global customers and partners.
